GYTC8H G657A FTTH round self-support fiber optic drop cable,3.5*6.5mm,1~4 fibers

Description:

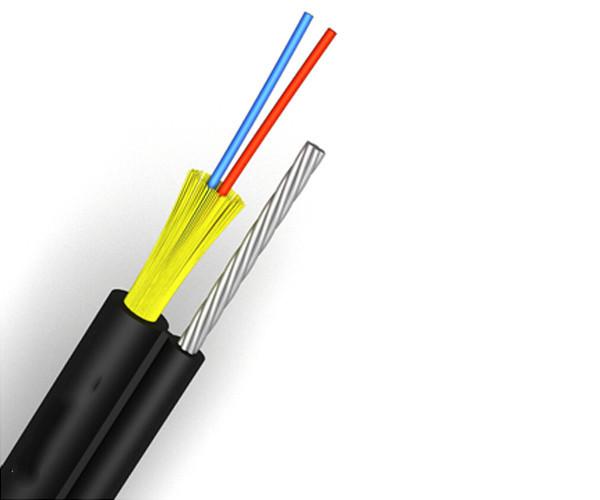

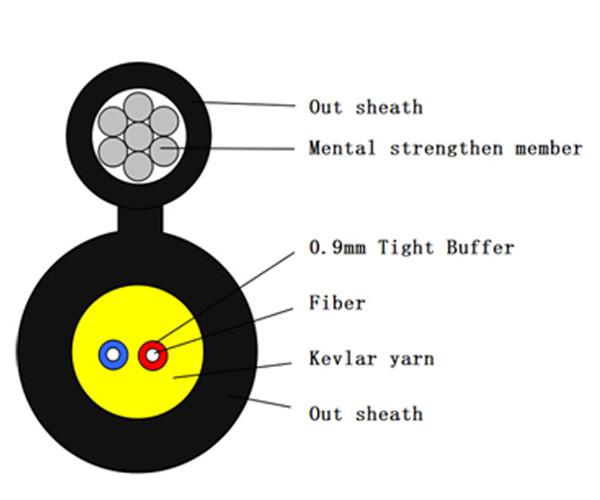

GYTC8H Round Self-Support Cable use 900um flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of yarn as strength member units, then the wire rope is integrated into an 8-shaped LSZH sheath cable.

Flat Type Drop Cable, also known as flat drop cable, with a flat out-looking, usually consists of a polyethylene jacket, several fibers, and two dielectric strength members to give high crush resistance.

Figure-8 Aerial Drop Cable is a self-supporting cable, with the cable fixed to a steel wire, designed for easy and economical aerial installation for outdoor applications.

Round Drop Cable usually contains a single bend-insensitive fiber buffered and surrounded by dielectric strength members and an outer jacket, which can provide durability and reliability in the drop segment of the network.

Features:

High strength Kevlar yarn member

Excellent temperature performance

Suitable for installation, operation and convenient for maintenance

Application:

Outdoor aerial application

Used in the FTTH projects

High speed optical routes in building

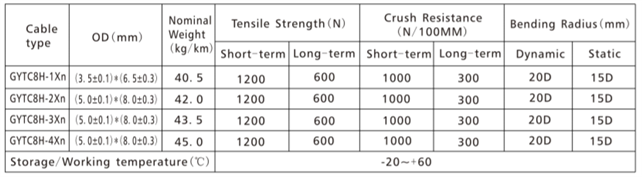

Technical parameters:

Note: Xn is fiber optic mode and D is the diameter of optic cable

Packing and Reel length:

Standard wooden drum with protection.

Standard reel length: 2/3 km/reel, other length is also available.
