12 Colors ST Ribbon Fan Out Pigtail Optical Fiber Installed For Splice Stray
12 colors ST ribbon fan-out pigtails, multi fiber fan out kits factory installed for splice stray
FEATURES
1. Any length is available: 1m,1.5m or other length you required.
2. Different fiber diameter for option: 0.9mm, 2mm or 3mm
3 SC,LC,FC,ST connector for option.
4 Telecom level and insertion loss below 0.3 db.
5. The pigtail corresponds to the international standard IEC 874-10.
APPLICATION
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical

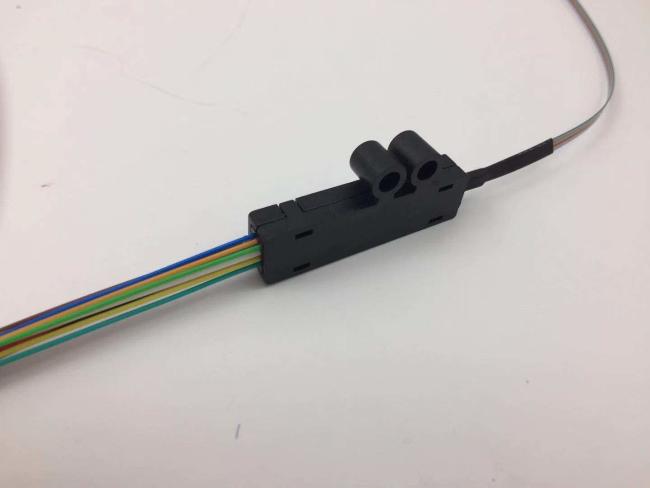

UNIFIBER provide various of bundle or ribbon fan-out fiber optic pigtails for splicing application, includes 4/6/8/12 core multifiber color coded ,These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket with different connectors terminated of SC, LC,FC, ST, UPC or APC polish Type.
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
