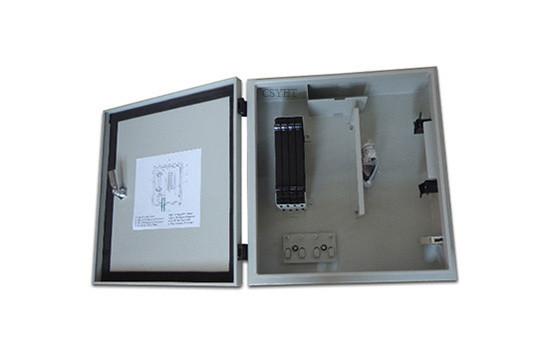

This fiber optic splitter box can box type splitter for fiber cable splitting, splicing, connection and distribution. It is outdoor wall mounted using.

Application:
Telecommunications subscriber loop
LAN/WAN
CATV

Features:
 Wall mount and Pole mount,Indoor and outdoor(IP65).
Electrostatic spraying, black or white color.
Inner splitter box: Aluminum material, 1*8(2psc) or 1*16.
Splitter: Metallic PLC splitter.
Connector: ST, SC, LC, MTRJ, FC.
Splice Tray: ABS material, white color
Max core: 32core

Performance:
operating temperature: -5°C+40°C
relative humidity:≤90%(+30°C)
Atm Press: 70Kpa-106Kpa
Storage temperature: -40°C+70°C
insertion loss: ≤0.2dB added losses: ≤0.2dB
return loss: ≥45dB added losses: ≤0.5dB
