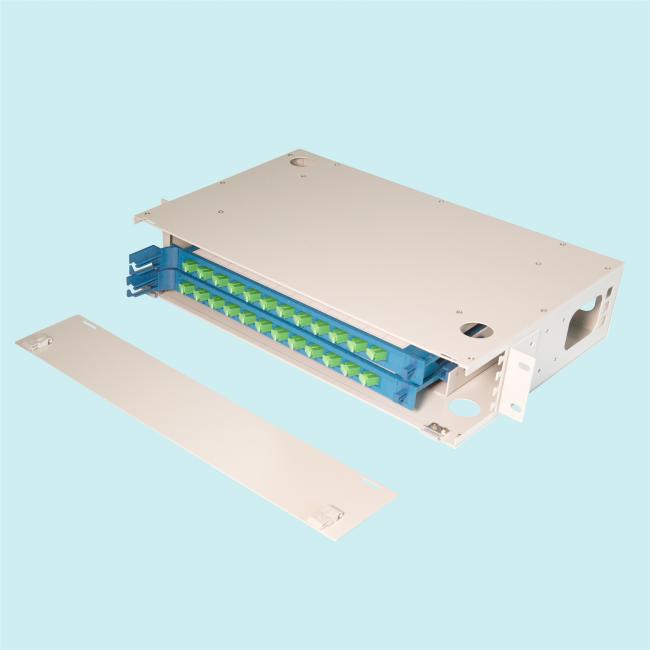

19" Rack Mounted Fiber Optic Cable Patch Panel 96 Port Cold Rolled Steel Sheet
96port fiber patch panel, 19" rack mounted optical distribution frame(ODF)
| TYPE | Size(W*D*H) | TYPE | Size(W*D*H) | TYPE | Size(W*D*H) | TYPE | Size(W*D*H) | TYPE | Size(W*D*H) |
| GB-A-12 | 480*205*1U | GB-B-24 | 480*280*2U | GB-C-12 | 480*235*1U | GB-D-24 | 480*280*2U | GB-E-24 | 480*260*2U |
| GB-A-24 | 480*205*2U | GB-B-48 | 480*280*3U | GB-C-24 | 480*235*2U | GB-D-48 | 480*280*3U | GB-E-48 | 480*260*3U |
| GB-A-48 | 480*205*3U | GB-B-72 | 480*280*4U | GB-C-48 | 480*235*3U | GB-D-72 | 480*280*4U | GB-E-72 | 480*260*4U |
| GB-A-72 | 480*205*4U | GB-B-96 | 480*280*5U | GB-C-72 | 480*235*4U | / | / | GB-E-96 | 480*260*5U |
| GB-A-144 | 480*205*8U | / | / | / | / | / | / | GB-E-144 | 480*260*7.5U |
This series is specially designed for optic fiber communication equipment room, it has the function of cable fixation and protection, fiber cable termination,wiring,distribution and protection of fiber cores and pigtails.
Features:
12/24/48/72/96 cores available and fit for 19˝ rack
Slide rail construction, easy for installing splice tray. 1~8 splice trays avail able
lug plate can be fixed via front and back adjusting
Capacity for each splice tray is 12 fibers
Splice tray is made of molded plastic
Splice tray is divided in two layers for winding and splicing fibers, Clamshell type
Suitable for DIN, FC, SC, LC(SC Feet), etc.
