Stainless Steel Outdoor Fiber Distribution Cabinet Slide Type Structure For Cable
It is suitable for outdoor light splitting in FTTX application,provide with light splitting function,easy for installation,safety in use and reducing cost.
Features:
Features:
Splitting light by inserting splitter module,save construction costs.New type of lock,hgh security.
Stainless steel body material,protection performance class reaches IP65.
New slide-type structure for cable,flexible operation.Security protection structure for radius of curvature of the fiber-optic.
Main Technical Specifications
Working Environment
Working temperature:-40℃～+45℃
Storage temperature:-40℃～+60℃
Relative humidity:≤95%
Atmospheric pressure:70Kpa～106Kpa

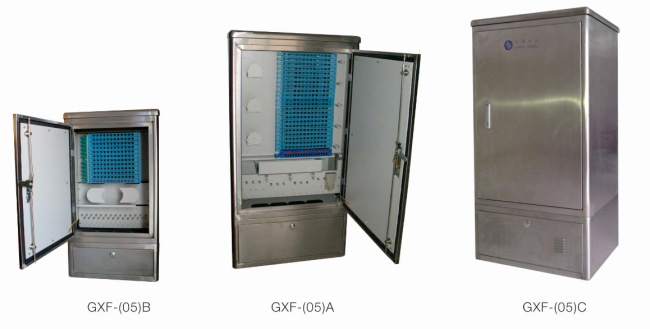

Dimensions:
| Model | Size(W*D*H mm) | Max Capacity |
| GXF-05A | 1460*750*360 | 192/128 |
| GXF-05B | 1080*600*330 | 96/64 |
| GXF-05C | 1460*750*620 | 384/256 |
