Dome Fiber Optic Splice Closure , Fiber Optic Enclosures Wall Mount 4 Ports
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3~5 business days
Brand:
UNIFIBER
Product Description
This Installation Manual is suit for the GPJM3-RS Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation. The scope of application is: aerial, underground, duct-mounting, well-mounting. The ambient temperature ranges from -40℃ to +70℃.
Basic Structure and configuration
Dimension and Capacity
| Outside dimension | 410mm×190mm |
| Weight (excluding outside box) | 2400g-3000g |

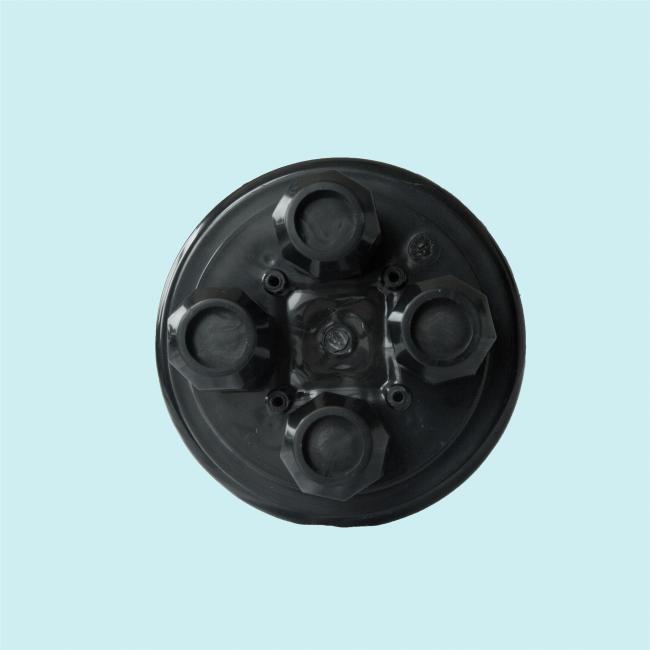

| Number of Inlet/outlet ports | 4 ports |
| Diameter of fiber cable | φ7mm-φ22mm |
| Capacity of FOSC |
Bunchy 6-96cores Ribbon within 288 cores |
Main components
| Item | Name | Quantity | Use | Remarks |
| 1 | cover | 1 set | Protectint cable splices in whole |
height×diameter 350mm×150mm |
| 2 |
Fiber optic splice tray (FOST) |
Fixing fiber heat shrinkable protective sleeve and holding fibers
|
Configuration as per requirement | |
| 3 | Fiber-storage tray | 1 piece | Holding optic fiber with protective sheath | |

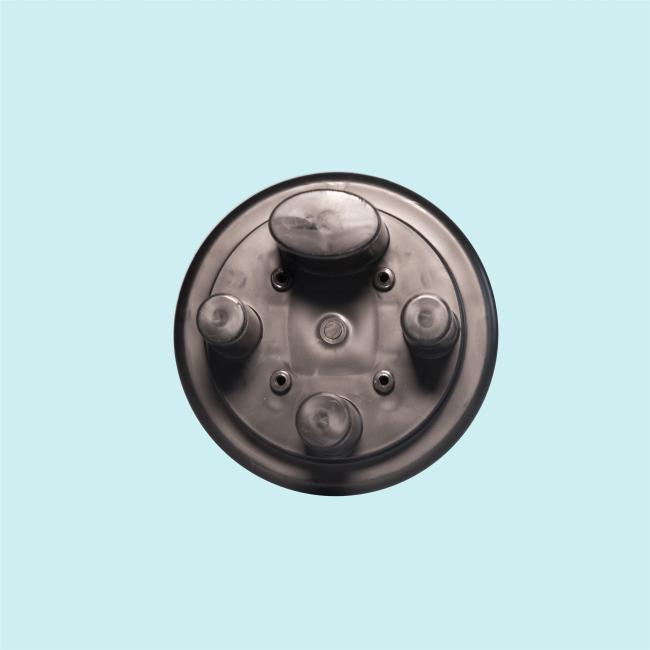

| 4 | Base | 1 set | Fixing outer and inner structure | |
| 5 | Plastic hoop | 1 set | Fixing base and cover | |
| 6 | Integrated Seal fitting | 1 piece |
main accessories and special tools
| Item | Name | Quantity | Use | Remarks | |
| 1 | Heat shrinkable protective sleeve | protecting fiber splices | Configuration as per requirement | ||
| 2 | Nylon tie | Fixing fiber with protective coat | Configuration as per requirement | ||
| 4 | Abrasive cloth | 1 piece | scratching fiber cable | ||
| 5 | Labeling paper | 1 piece | label fibers | ||
| 6 | Special wrench | 2 pieces | tighten reinforced nut and locking nut | ||
| 7 | Adhesive tape | 1 roll | enlarge diameter of fiber cable, which fits in with seal fitting | Configuration as per capacity | |
| 8 | Insulation tape | 1strip | enlarge diameter of fiber cable for easy fixing | ||
| 9 | Fiber buffer tube | hitched to fibers and fixed with FOST, managing buffer | disposition according to need | ||
| 10 | Metal hoop | 1 piece | Used for wall mounting and pole hugging application. | ||
