FOSC Fiber Optic Splice Closure Three In / Out 5 Ports Load With PLC Splitter
JS-M series can provide with 3 type:2 in 2 out,3 in 3 out,4 in 4 out.They can satisfy customer's different applications and can be installed by pole mounting,wall mounting and aerial.They can be divided into 2 types according to the sealing type:screw thread mechanical and heat shrikable.

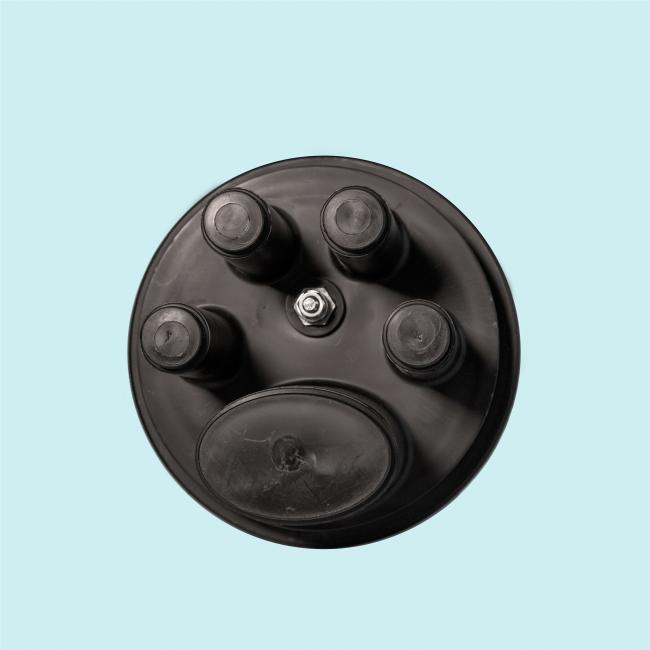

Fiber Optic Splice Closure (FOSC) is a member of dome series. The function of the product is in the optical transmission link, to provide various types of fiber optic cable through, branching, and related connecting protection, IP safety rate is IP68. It can be installed 1x2: 32 PLC splitter or 2x2: 16 PLC splitter. This model has four small round ports and one large round port. The sealing component is made from vulcanized rubber. The sealing method adopts screw pressure. This model is suitable for different methods of branch connection, including branching of uncut cables. It could be used for aerial, pole-mounting, wall-mounting and underground application. This model is excellent in sealing performance, easy for installation, wide application and is prior choice of fiber connection equipment.

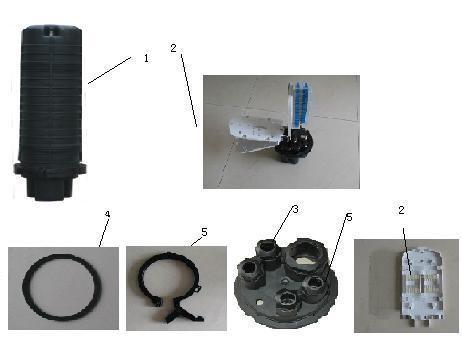

Main components
| Items | Product | Quantity | Application | Remark |
| 1 | Cover | 1 pc | Integrated protection of closure | |
| 2 | Fiber splice tray | required | Fix the fiber, protect heat shrink tube, storage fiber and splitter | |
| 3 | PLC splitter(2:32 in max) |
2:32(1 pc) 2:16(2 pc) |
Light splitting | Optional part |
| 4 | SC adapter | 36 pcs | Connection | Optional part |
| 5 | SC-1.5m pigtail | 32 pcs | Fusion with inlet cable | Optional part |
| 6 | Base | 1 set | Fix the internal and external structure | |
| 7 | Plastic hoop | 1 set | Fix the base and cover | |
| 8 | Sealing ring | 1 set | Big sealing part for sealing cover and base, different small sealing parts for fiber sealing | |
| 9 | Plastic plug | 4 pcs | For non cable entry sealing | |
| 10 | Valve | 1 set | Gas-filled test air pressure and the sealing performance | Optional part |
| 11 | Earthling device | 1 set | Leading the internal mental components to grounding | Optional part |
Note:
When customers choose to install splitter by themselves, please refer to the below contents to configure the pigtail length of splitter input port and output port.
