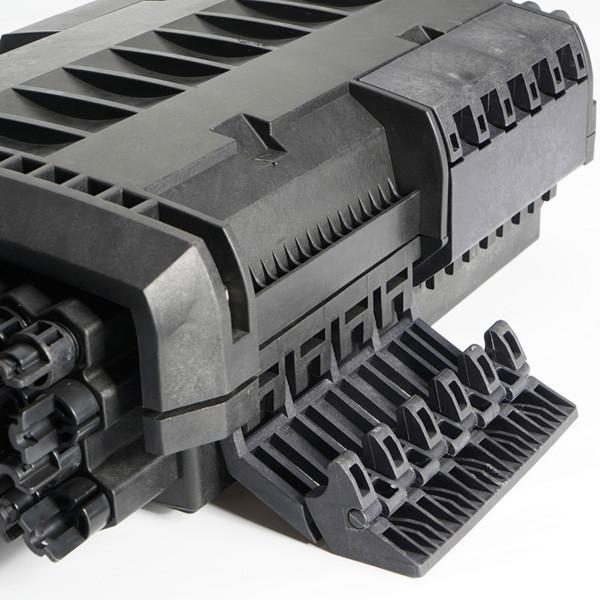

Waterproof Fiber Optic Splice Closure 96 Fiber Flipped Over Design With 24 Cable Outlet
waterproof fiber optic splice enclosure, up to 96fiber, with 24 cable outlet,flipped over design easy to operate
Features
1 port for uncut cable Ф10~l 7.5mm,24 cable outlet (applicable for 2x3mm soft cable or Ф3~8mm round cable).
Capacity: 24F per tray. could be installed with 4 trays, max capacitv is 96F.
Protection grade: IP68. Mechanical seal. Installation method: Wall-mounting,Pole-mounting.
Cnuld be installed with micro type splitters and 24 pcs of SC adapters.Designed to be flipped over without screw. Easy to use.

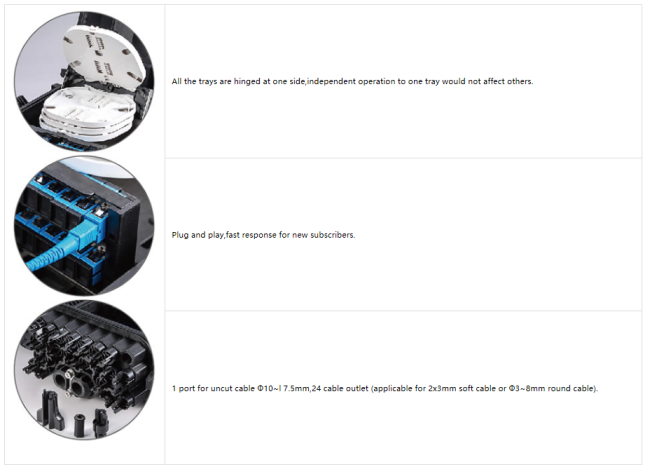

All the splice trays are hinged together at one side,which eases the operation of each tray. Optic fiber will not be damaged because of the mess of transitional tuce. Also cables in one tray can be spliced in other trays.
Plug and play,fast response for new subscribers.
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-8202 | 380×245×130mm | 3.0-4.0kg | 395×255×165mm(1 pcs) | 540×410×350mm(4 pcs) |
