Heat Shrink Sealing Fosc Fiber Optic Cable Junction Box Large Capacity 480F Dome Type
Heat shrink sealing Mechanical seal fosc closure, large capacity 480F Dome type,aerial, bracket,pipe-lined,handhole or manhole avaliable
Suitable for beam optical cable and is available for usage of various connections(distribute, bridging, divergence etc.)in multiple environments (aerial, bracket, pipe-lined, handhole, manhole.).Mechanical seal and heat shrink seal are separately used on the box and cable ports. Protection grade: IP68.
Product Feature:
Ф14~22 fiber entrances and outlets, 12 Ф8~16 fiber entrances, uncut cableФ10~25 and outlets which is more practical.
It applies to various ways of bifurcations including bifurcation of uncut cable.Maximum capacity for 480 core,using 12 core fiber disc,large capacity.
Adaptor installation is applicable.
 |
 |

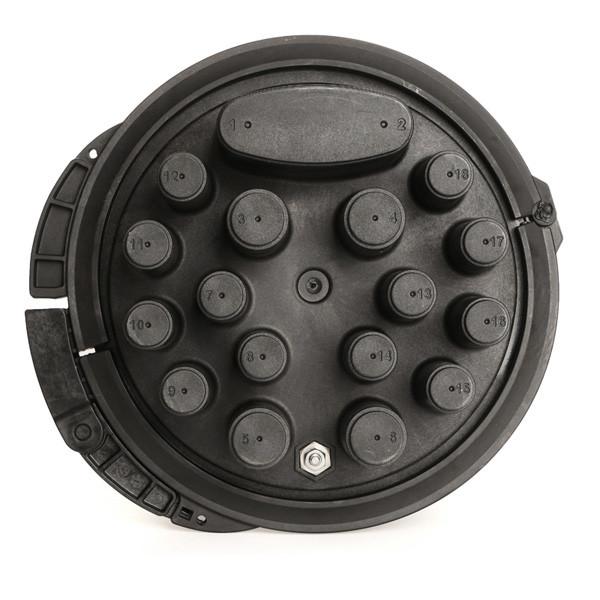

Small hole can meet requirementsof Ф8~16 cable output |
 |
Round hole meet requirements of Ф14~22 cable output | |
 |
Oval hole can meet requirements of Ф10~25 uncut input |
| Box Material | Modified polymer plastic | Appearance size (mm) | 500×ф270 |
| Seal Material | Vualcanized silicone rubber | Weight(kg) | 7.5-8.0 |
| Type | Name | Packaging size (mm) |
Remark |
| GPJ09-5813 | 480F Dome fiber splice closure | 650×360×320 (1 pcs) |
