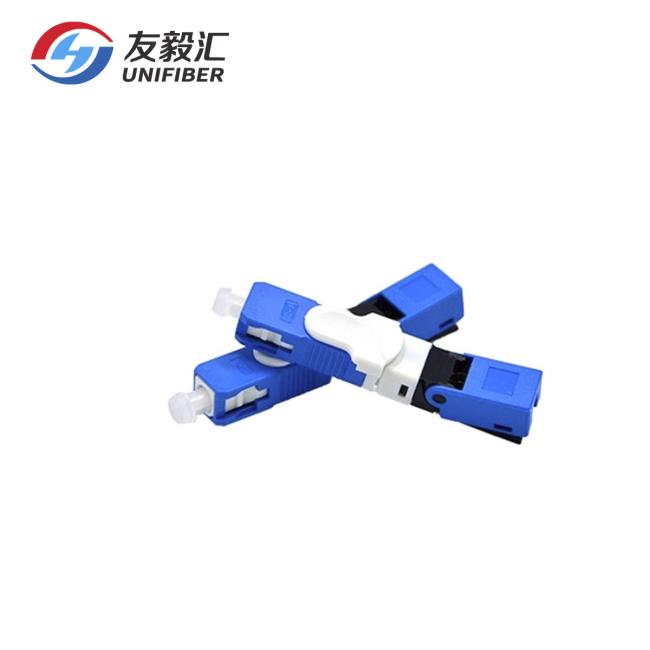

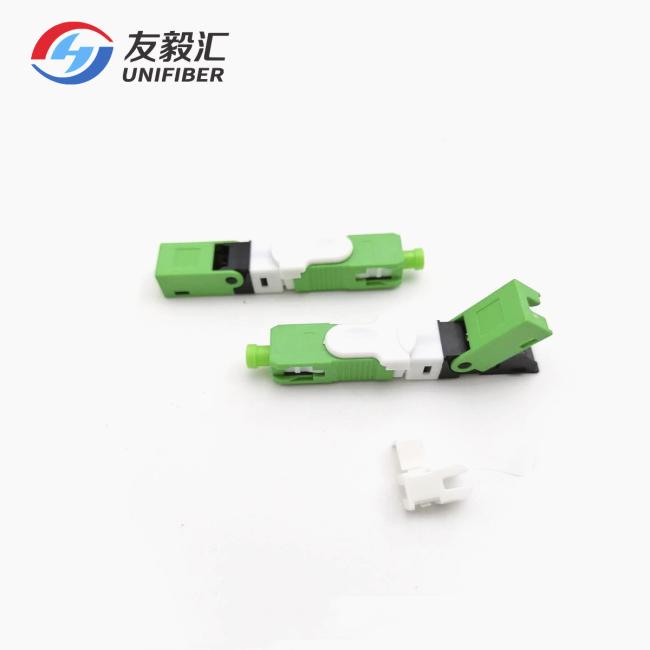

ESC250D FTTH Field Installable Fiber Optic Quick Connector SC/UPC

Price Negotiable

Price: Negotiable

MOQ: 100pcs

Delivery Time: 3-5days

Brand: UNIFIBER-OEM

Product Description

ESC250D FTTH Field Installable Fiber Optic Quick Connector SC/UPC is made with precision and high quality Zirconia ferrules and provides a highly reliable connection in most of the network application. The SC type is available with 250/900um buffed fiber, 2.0mm,1.6mm x 2.0mm, 2.0mm x 3.0mm and 3.0mm jacket cable. This kind of Field Assembly Optical Connector is designed for fast and simple field termination of single fiber, without polishing or epoxy.

Features

Reliable and superior optical performance

Easily installed, Quick and easy fiber termination in the field.

Can be intalled and maked repeatedly thus avoiding loss.Factory-installed fiber stub.

Fast connecting and repeat, No special tools needed when installed.

No epoxy and polishing required, No special tools needed when installed.

Reliable, durability over 500 times mating

Applications

FTTH & FTTx;
Passive Optical Networks;
Broadband, CATV.

Specification:

Product name	ESC250D FTTH Field Installable Fiber Optic Quick Connector SC/UPC
Type	Pre-Embedded
Suitable optical fiber	2.0*3.0 cable
Fiber mode	Single & Multi mode
Installation time	Within 60s ( No fiber cut )
Insertion loss	≤ 0.3dB (Max 0.5)
Return loss	≥ 50dB
Tensile strength	> 50N
Working Temperature	-40~+75℃
Storage Temperature	-40~+85℃
