Rossette Fiber Optic Distribution Box Embedded Type 2 Port Outlet Panel ABS
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3~5 business days
Brand:
UNIFIBER
Product Description

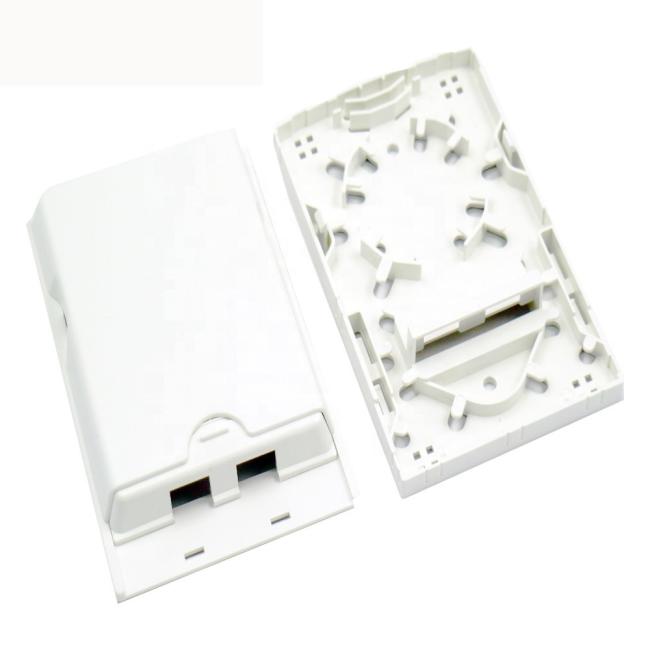

FTTH fiber optic Wall mounting Outlet panel, Embedded type fiber rossette box , easy for installation and removal
fiber rossette box is able to hold up to 2 subscribers. It is used as a termination point for the drop cable to connect with patch cable in FTTH indoor application. It integrates fiber splicing, termination, storage and cable connection in one solid protection box.
APPLICATION
Local area networks
Wide area networks
Local area networks
Wide area networks
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Fiber to the building(FTTB)
Embedded type surface, easy for installation and removal.
2 ports cable entrance for patch cable.
2 ports cable entrance for patch cable.
Integrated with splice cassette and cable management rods.
Dust-proof design with IP-45 Protection level.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Manage fibers in a reasonable fiber radius condition.
Easy to maintain and extend the capacity.
Suitable for the fusion splice or mechanical splice.
Specification:
| Type | Socket Panle-B | Socket Panle-C | Socket Panle-D | Socket Panle-E | Socket Panle-F |
| Size | 86*86*23 | 86*96*23 | 90*120*25 | 80*100*23 | 86*86*26 |
| Cable Diameter | 3.0mm | 3.0mm | 3.0mm | 3.0mm | 3.0mm |
| Cable port | 2 | 2 | 2 | 2 | 3 |
| Max capacity of splice | 2 | 2 | 1 | 4 | 1 |
