Short Span Preformed Line Tension Clamp Tangential Suspension Set For ADSS Cable Fittings
Price:
Negotiable
MOQ:
100 set
Delivery Time:
5-8days
Brand:
UNIFIBER or OEM
Product Description

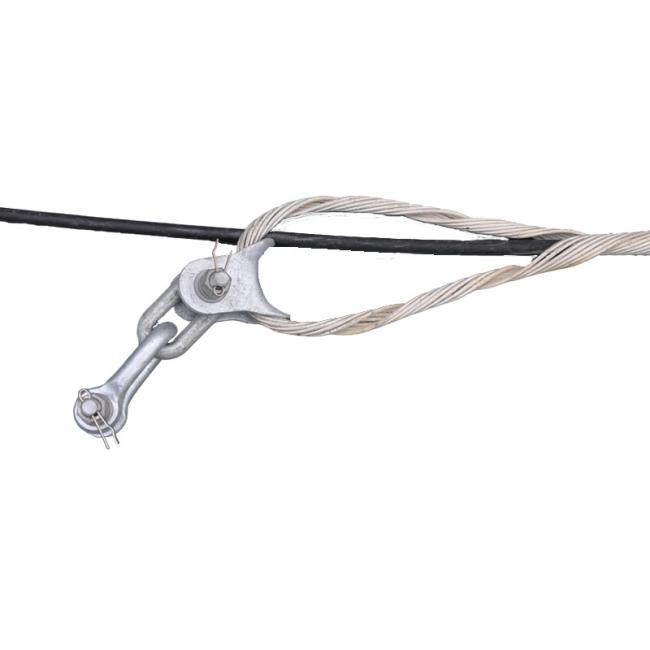

Short-Span Preformed Line Tension Clamp For ADSS,Short Span Tangential Suspension Set For ADSS Cable Fittings

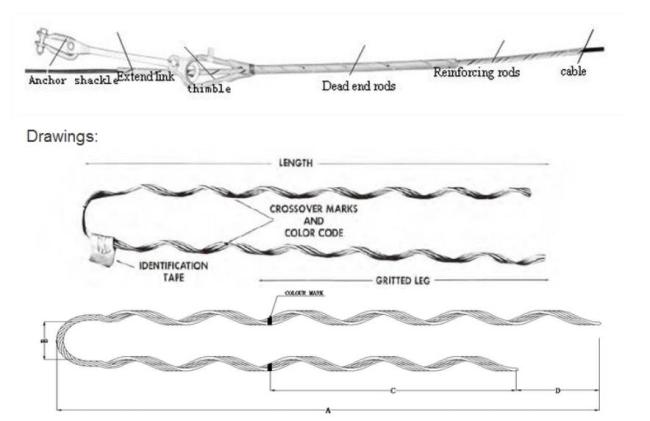

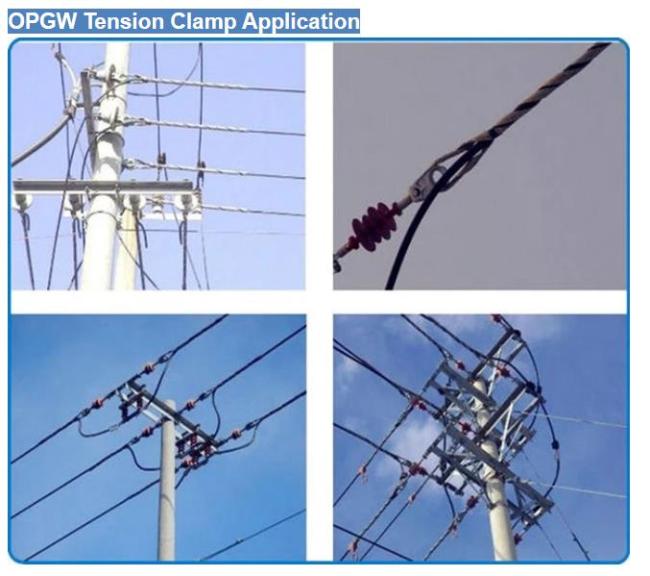

Tension Clamps are designed to connect ADSS cables and poles. Aluminum clad Steel rods can provide protection and cushioning to the ADSS cables. The special design of helical protection rods makes ensure that Tension Sets can’t cause undue stress to the ADSS cables. So that the normal lifetime of cables system is ensured.
| OPGW Tension Clamp Specification | |||||||
| Product type | suitable cable diameter (mm) | Inner reinforcing armour rods | Outer armour rods | color | |||
| length (mm) | rods No. | length (mm) | rods No. | ||||
| ONF 1000 xxx | 9.0 - 10.0 | 1400 | 13 | 900 | 6 | red | |
| ONF 1110 xxx | 10.1 - 11.1 | 1500 | 14 | 1000 | 6 | orange | |
| ONF 1220 xxx | 11.2 - 12.2 | 1600 | 15 | 1100 | 6 | yellow | |
| ONF 1330 xxx | 12.3 - 13.3 | 1700 | 16 | 1200 | 6 | green | |
| ONF 1440 xxx | 13.4 - 14.4 | 1800 | 18 | 1300 | 6 | cyan | |
| ONF 1550 xxx | 14.5 - 15.5 | 1900 | 19 | 1400 | 7 | blue | |
| ONF 1660 xxx | 15.6 - 16.6 | 2000 | 20 | 1500 | 7 | purple | |
| ONF 1770 xxx | 16.7 - 17.7 | 2100 | 21 | 1600 | 8 | black | |
| ONF 1880 xxx | 17.8 - 18.8 | 2200 | 22 | 1700 | 8 | ||
