Single / Multi Mode 2 Strand Fiber Optic Cable Outdoor Direct Aerial Duct GYDXTW Ribbon
Price:
Negotiable
MOQ:
1KM
Delivery Time:
5-8days
Brand:
UNIFIBER or OEM
Product Description

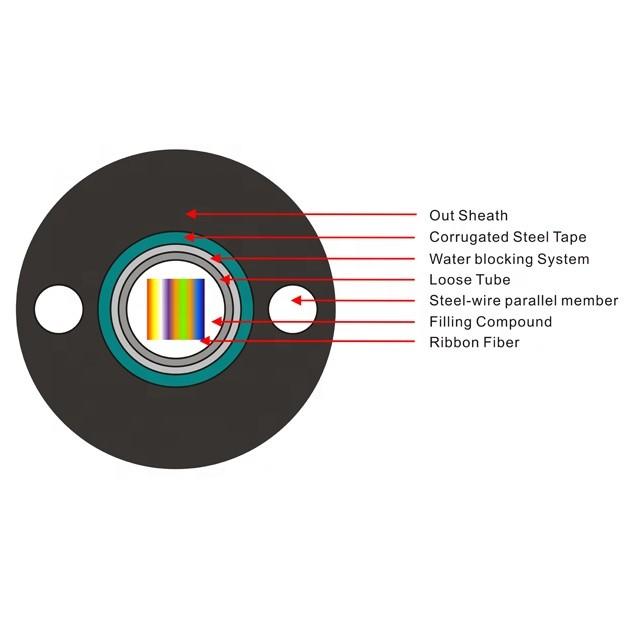

Single mode and multimode 12 strand fiber optic cable, Outdoor direct Aerial duct GYDXTW ribbon fiber optic cable
GYDXTW is an aerial or duct use of fiber optic cable. We supply GYDXTW from 2 cores to 144 with both single-mode and multimode types.
Features
Low dispersion and attenuation.
Small cable diameter, light cable weight.
Easily to lay, large fiber count.
Ribbon connection.
Excellent mechanical and crush resistance.
Application
Access network.
Aerial and duct application.
Long-distance communication.
Technical parameters
| Cable type | OD(mm) | Nominal Weight(kg/km) | Tensile Strength(N) | Crush Resistance(N/100mm) | Bending radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GYDXTW-12-48Xn | 11.8±0.5 | 164.0 | 2000 | 600 | 1000 | 300 | 20D | 15D |
| GYDXTW-60-72Xn | 13.0±0.5 | 181.0 | 2000 | 600 | 1000 | 300 | 20D | 15D |
| GYDXTW-74-96Xn | 13.5±0.5 | 194.0 | 2000 | 600 | 1000 | 300 | 20D | 15D |
| GYDXTW-98-120Xn | 14.5±0.5 | 212.0 | 2000 | 600 | 1000 | 300 | 20D | 15D |
| GYDXTW-122-144Xn | 15.0±0.5 | 228.0 | 2000 | 600 | 1000 | 300 | 20D | 15D |
| Storage/Working temperature | -40~+70 | |||||||
