Wall mount fiber optic patch panel SC, indoor/outdoor Cold-rolled steel fiber optic patch box

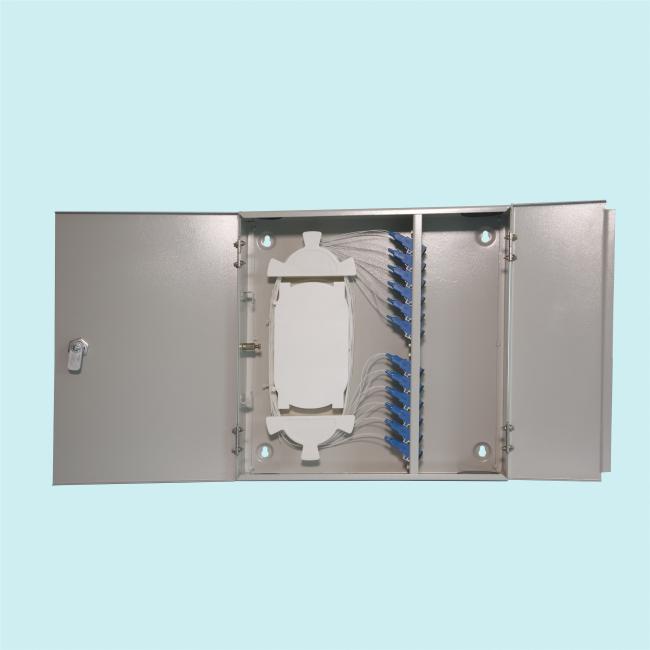

Double Door Optical FTTH Distribution Frame Wall Mount Fiber Optic Patch Panel can manage both single fiber, ribbon & bundle fiber cables for indoor using. There are FC, LC, SC, ST output interfaces optional, and large working space to integrate the pigtails, cables and adapters.

Features

With cold-roll steel box, splicing unit, distribution unit and panel
Various panel plate to fit different adapter interface
 Adapters can be installed: FC, SC, ST, LC
Suitable for single fiber and ribbon & bundle fiber cables
Special design ensures the excess fiber cords and pigtails in good order
No interval and easy for management and operation

Specification
Working temperature:-25℃ ~ +40℃
Storage temperature:-25℃ ~ +55℃
Relative humidity:≤85% (+30℃)
Atmospheric pressure:70 ~ 106 kpa
