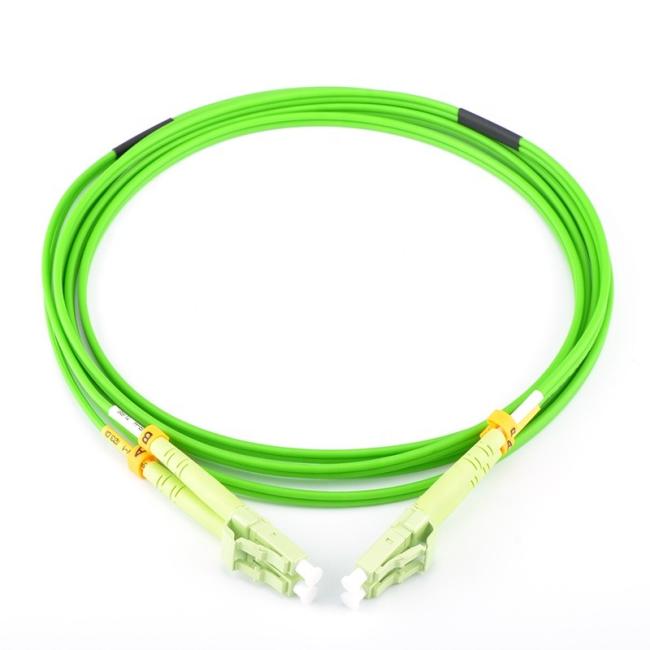

LC To LC Fiber Optic Patch Cables 100Gb Duplex Multimode 50/125 OM5 Premium LSZH
100Gb Duplex Multimode 50/125 OM5 premium/LSZH Fiber Patch Cable LC to LC 1/3/5/7 meters,data center HD cabling solution
OM5 fiber optic patch cables, have been designed to specifically handle high-speed data center applications with using two fibers to transmit from 40GBs up to 100GBs. With the emergence of SWDM (Shortwave Wavelength Division Multiplexing) applications in data centers, OM5 fiber cables provide optimal support and performance at higher speeds. Even with the high speed, OM5 fiber cables are backward compatible with existing OM4 applications and networks.
Data Center Cabling
CATV, LAN, MAN, WAN, Test &Measurement
Medical
FEATURES
Good in repeatability
Good in exchange
Low insertion loss and back reflection loss
Excellent mechanical endurance
Parameters
| Mode | Single mode | Multimode | |
| Polish | UPC | APC | PC |
| Insertion Loss | ≤0.30dB | ≤0.20dB | ≤0.20dB |
| Return Loss | ≥50dB | ≥60dB | ≥30dB |
| Test Wavelength | 1310/1550nm | 850/1310nm | |
| Durability(500 Matings) | ≤0.2dB | ||
| Operating Temperature | -40~+60 | ||
| Storage Temperature | -45~+85 | ||
| Fire Resistant | IEC 60794-2-30 | ||
| Standards-Compliant | ROHS,IEC and GR-326 | ||
| Fiber type | Single mode: | 9/125-G652D | 9/125-G655 | 9/125-G657A,G657A2 | 9/125-G657B3 | |
| Multimode: | 50/125-OM2 | 62.5/125-OM1 | 50/125-OM3 | 50/125-OM4 | 50/125-OM5 | |
| Fiber Brand | YOFC, Corning, Sumitomo, Fujikura | |||||
| Connector | SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC | |||||
| Cord type | Simplex ,Duplex | |||||
| Cable diameter | 0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm | |||||
| Cable jacket | PVC, OFNR, LSZH, OFNP | |||||
| length(M) | 0.5m,1m,2m,5m,10m,25m,50m,100m…Customized | |||||
