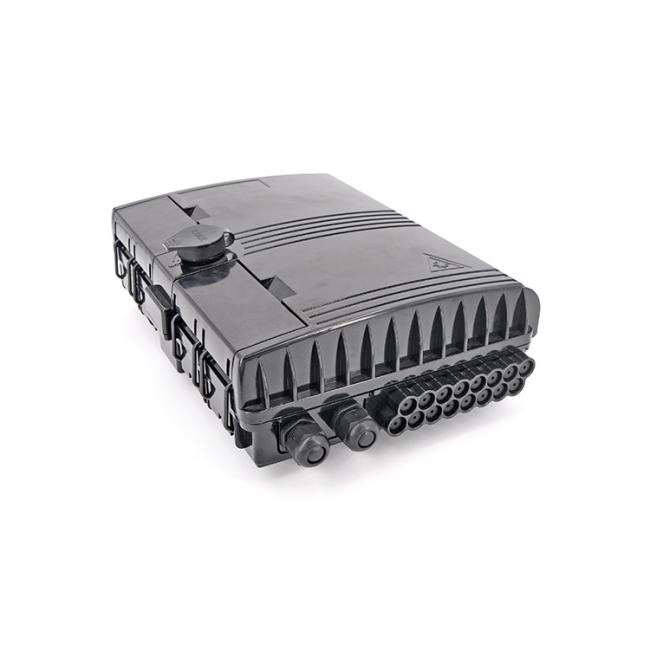

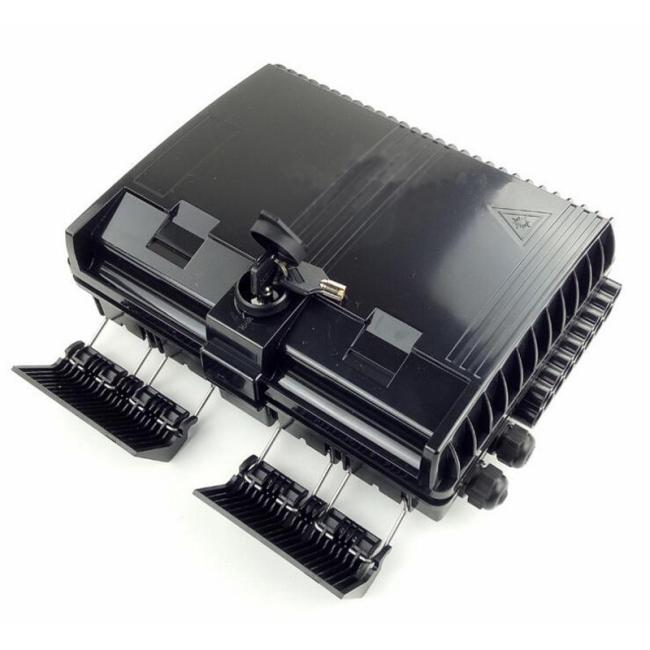

Waterproof IP66 Outdoor Fiber Splitter Box 8 16 Port FTTH Wall / Pole Mounted
Fiber splitter box outdoor waterproof IP66 8/16 port FTTH wall/pole mount fiber optic breakout box
8/16 Core PLC Splitter distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Application
Widely used in FTTH access network.
CATV Networks
Data communications Networks
Local Area Networks
Telecommunication Networks
Features
PC+ABS material used ensures the body strong and light..
Wet-proof, water-proof, dust-proof, anti-aging
Easy installations: Ready for wall mount – installation kits provided
Space saving: Double-layer design for easier installation and maintenances
Easy installations: Ready for wall mount – installation kits provided.
Protection level up to IP55
Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adapt or installation, easy maintenance.…
Specifications:
| Item | Capacity | Size | Color |
| FDB216A | 16 port | 295mm(W)×220mm(H) ×85mm(D) | Black or White |
