Unjacketed Color Coded Fiber Optic Pigtail LC UPC For Optical Distribution Frame

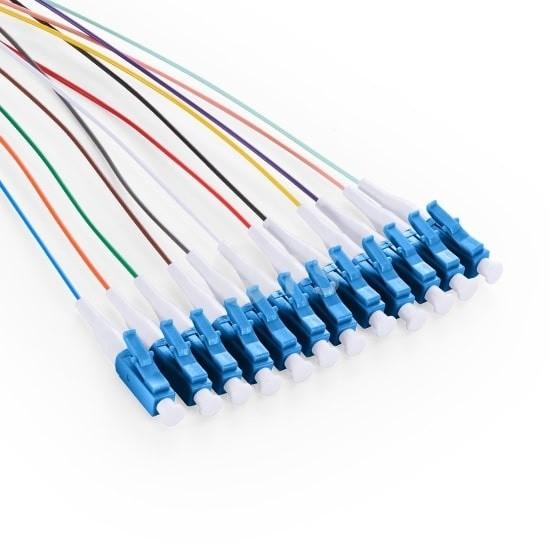

LC UPC 12 Fibers OS2 Unjacketed Color-Coded 0.9mm Pigtail 1m(3ft) for Optical distribution frame/ fiber panel enclosure
UNIFIBER fiber optic pigtails includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
FEATURES
Different fiber diameter for option: 0.9mm, 2mm or 3mm
Telecom level and insertion loss below 0.3 db.
SC,LC,FC,ST connector for option.
Any length is available: 1m,1.5m or other length you required.
APPLICATION
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Military industry
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
