Mini Steel tube 1x4 PLC Fiber Optic Splitter G657A2 900um Pigtail SC/APC For CATV/FTTH
Mini Steel tube 1x4 PLC Fiber Optic Splitter G657A2 900um Pigtail SC/APC For CATV/FTTH

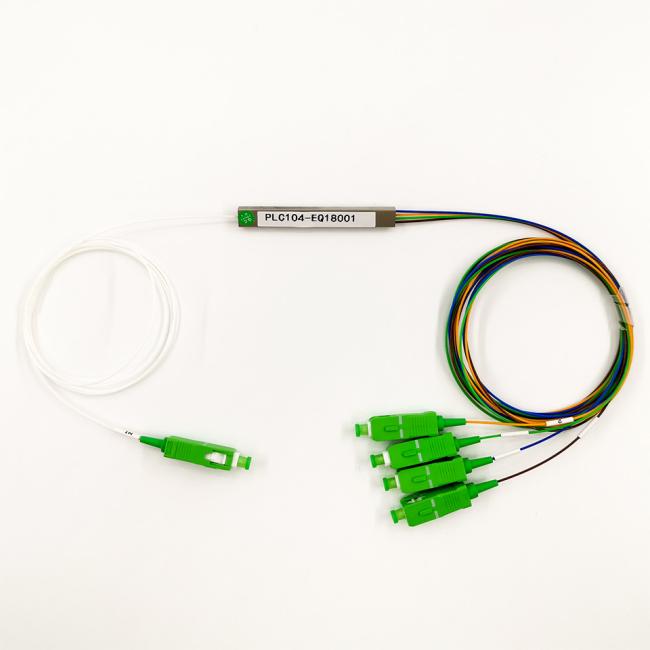

PLC splitter is based on a quartz substrate integrated waveguide optical power distribution device, has the advantages of small volume, the working wavelength range, high reliability, good light uniformity etc characteristic, is especially suitable for passive optical network ( EPON, BPON, GPON etc ) connected local and terminal equipment and realize the optical signal devide.
FEATURES
Good uniformity and low insertion loss
Low Polarization Dependent Loss
Excellent Environmental Stability
APPLICATION
Fiber to the home (FTTH)
Passive optical networks(PON)
Cable television (CATV)
Local area networks (LAN)
Specification
|
Parameters
|
1×2
|
1×4
|
1×8
|
1×16
|
1×32
|
1×64
|
1×128
|
|
Operating Wavelength(nm)
|
1260~1650
|
||||||
|
Fiber Type
|
G657A1 or customer specified
|
||||||
|
Insertion Loss (dB)(P/S Grade)
|
3.8/4.0
|
7.1/7.3
|
10.2/10.5
|
13.5/13.7
|
16.5/16.9
|
20.5/21.0
|
23.8/24.2
|
|
Loss Uniformit(dB)
|
0.4
|
0.6
|
0.8
|
1.2
|
1.5
|
2
|
2.5
|
|
Polarization Dependent Loss(dB)
|
0.2
|
0.2
|
0.2
|
0.25
|
0.3
|
0.35
|
0.4
|
|
Return Loss(dB)(P/S Grade)
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
55/50
|
|
Directivity(dB)
|
55
|
55
|
55
|
55
|
55
|
55
|
55
|
|
Wavelength Dependent Loss(dB)
|
0.3
|
0.3
|
0.3
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Temperature Stability (-40~85℃)(dB)
|
0.4
|
0.4
|
0.4
|
0.5
|
0.5
|
0.5
|
0.5
|
|
Operating Temperature(℃)
|
-40~+85
|
||||||
|
Storage Temperature(℃)
|
-40~+85
|
||||||
|
Device Dimension(mm)
|
40×4×4
|
40×4×4
|
40×4×4
|
50×7×4
|
50×7×4
|
60×12×4
|
N/A
|
|
Module Dimension(mm)
|
100×80×10
|
120×80×18
|
141×115×18
|
||||
|
Mini-Module Dimension(mm)
|
50×7×4
|
60×12×4
|
80×20×6
|
100×40×6
|
N/A
|
||
