SC/FC/ST Connectors Fiber Optic Splice Trays 12 Core Ribbon Fan Out Fiber Pigtails

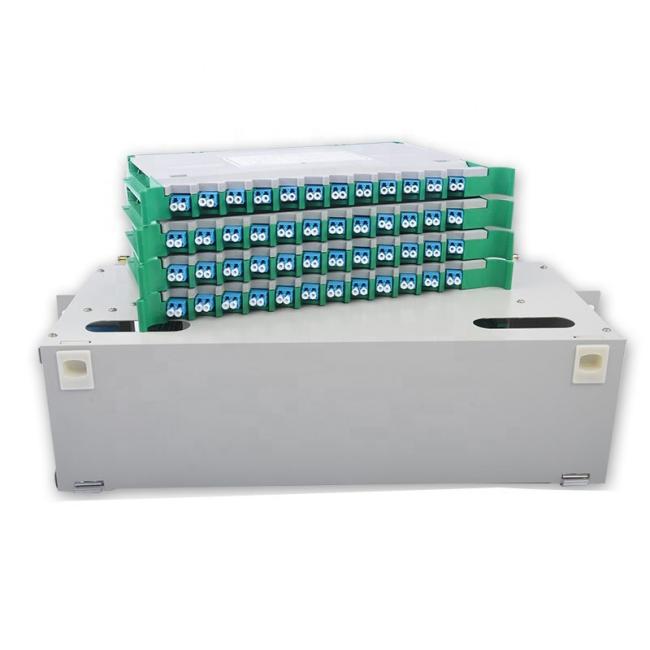

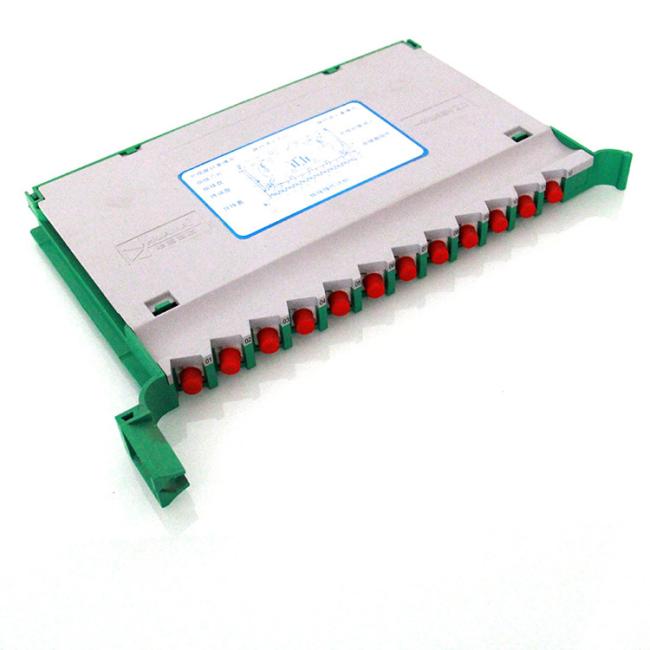

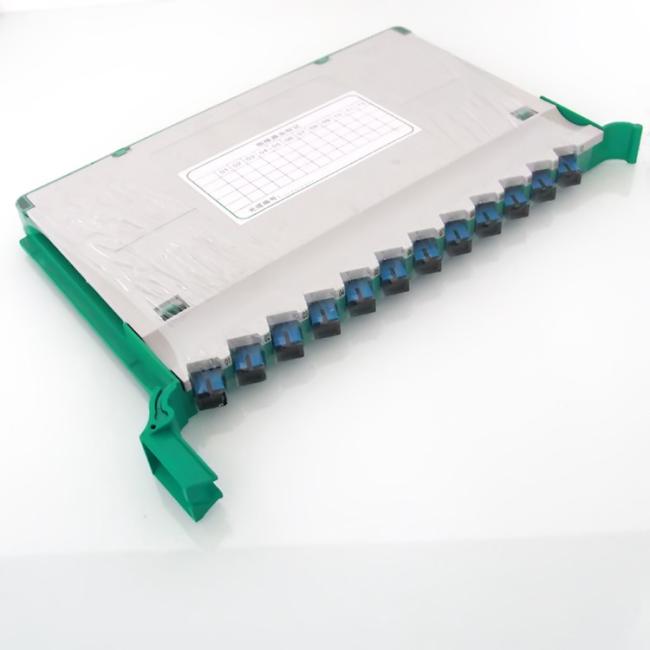

12 Port Fiber Optic Splice Trays, loaded with 12 core ribbon fan-out fiber pigtails SC/FC/ST connectors, up to 24 fibers
ODF includes fiber distribution devices, fiber splicing devices and fiber storage devices. It connects fiber cables and fiber telecom equipment. It has the functions of protecting fiber cables, splicing fiber and storing extra pigtails.
Features:
Standard size, light weight and reasonable structure.
Low PDL, low excess loss, low insertion loss
Environmental stable
Easy for management and operation.
Applications:
FTTX (FTTP, FTTH, FTTN, FTTC)
Passive Optical Networks (PON)
Local Area Networks (LAN)
CATV Systems
Test Equipment
Fiber optic cross cabinet
ODF
Telecommunication network system
Specification:
| Material | ABS |
| Size(MM) | 320*180*25 |
| Tensile Strength(N) | 100 |
| Durability(dB) | ≤0.2 |
| Typical Change | 1000 Matings |
| Repeatability(dB) | ≤0.1 |
| Insertion Loss(dB) | ≤0.3 |
| Storage/Operating Temperature | -40°C to + 80°C |
