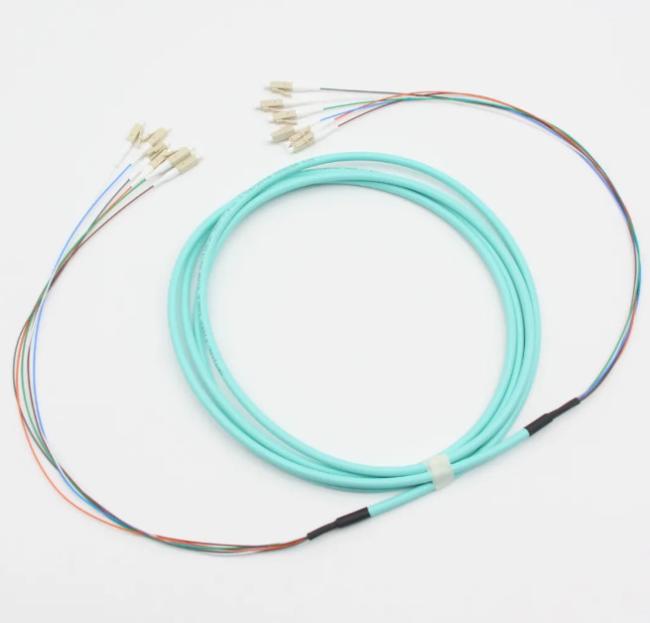

4 6 8 Counts LC To LC Fiber Optic Cable Multimode 50/125um 10G OM3 Assembly Drum
4/6/8 counts LC to LC 50/125um multimode 10G OM3 Break-out fiber optic patch cord assembly drum with pulling eye
Indoor multi-fiber breakout cable are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
Applications
High integrated equiement and devices
Switching between trunk line and distribution line
High density cable wiring system
Local/wide area networks
Features
Low insertion loss and high reflection loss
4-48 core 0.9, 2.0, 3.0 break-out leg available
high fiber density,Small volume
High reliability and Excellent mechanical capability
Specifications
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -25℃ to +70℃ |
| Storage Temp. | -40℃ to +85℃ |
