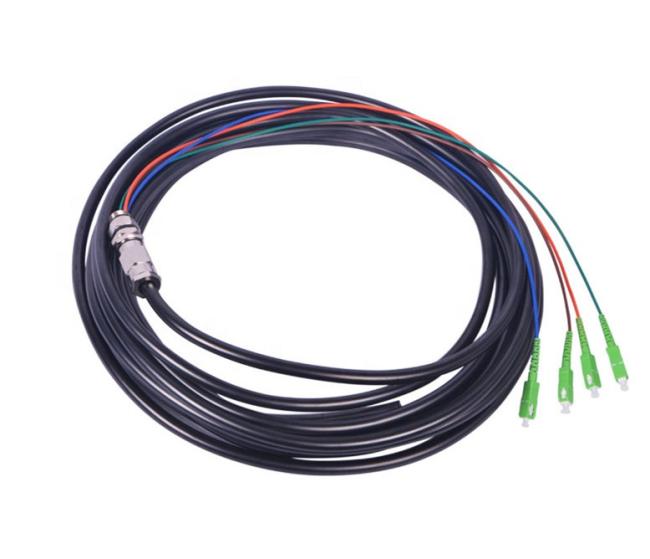

CATV Fiber Optic Pigtail Black PE Sheath Rigid With FC/ST/LC/SC Connector
Outdoor Waterproof Fiber Optic Pigtails with FC/ST/LC/SC Connector black PE sheath for CATV
2/4/6/8/12/24 Core SM Waterproof Pigtail is a length of fiber with one-end connector attached, suitable for outdoor use and adverse environmental condition, SC/APC or SC/UPC..LC,FC Connector is optional,Length:3M,4M,5M...is optional.
Features
Simple installation
Capacity:2-16 cores;
Excellent water-resistance performance;
Applicable to FC , SC , ST , MU...connectors;
Waterproof ,rigid and anti-corrosive copper connector;
Application
Optical fiber pigtail, also named
CATV, IPTV, etc
Optical fiber communication systems
Optical fiber data transmission
Building network access
Cabling system, ODF
FTTx applications
Specification
| rameter | Unit | FC, SC, LC | ST, MU | MT-RJ, MPO | E2000 | ||||||||
| SM | MM | SM | MM | SM | MM | SM | |||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | PC | APC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310, 1510 | 1310, 1510 | 1310, 1510 | 1310, 1510 | ||||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ||||||||
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 | ||||||||
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 | ||||||||
| Cable diameter | mm | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | φ3.0, φ2.0, φ0.9 | ||||||||
