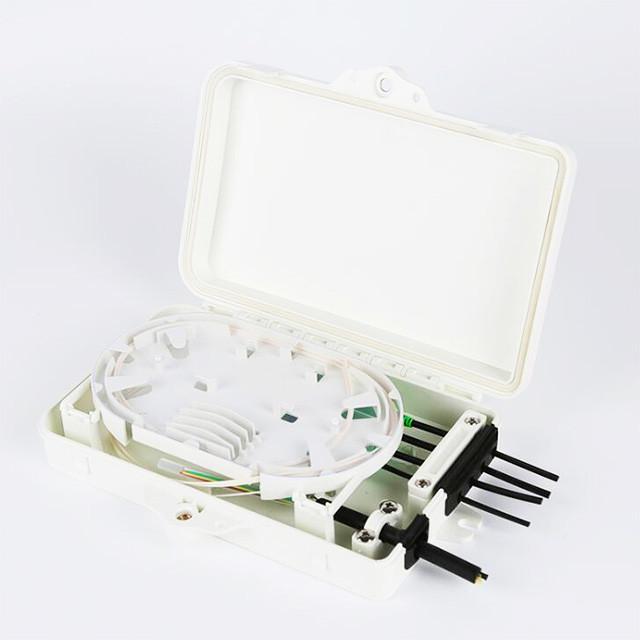

IP66 Waterproof Fiber Optic Termination Box 4 Port FTTH With SC/LC Connectors
4 port FTTH outdoor fiber box with SC/LC connectors, can load with 1x4 micro PLC splitter, IP66 waterproof grade
The fiber optic distribution box is widely used for indoor or outdoor optic fiber splice and splitter. Adopt high qualified fire-resistance material. Simple inner structure and easy installation, is a good choice for network construction.it can be installed on the wall and adapt variety of optical connection styles, which will make the optic fibers managed effectively
Features
Protection grade: IP 66
Function: Cable terminal, passive splitter
Splitter type: Micro PLC splitter
Adapter type: SC & LC
Available cable : Figure 8 soft cable, general outdoor cable, indoor cable.
| Type | Dimensions(mm) | Cable diameter(mm) | Cable ports | Suitable adapter | Max capacity |
| FTB-104B | 150*110*30 | φ7-φ10 | 5 | SC | 4 |
| FTB-104C | 210*140*40 | φ7-φ10 | 7 | SC | 6 |
| FTB-106C | 210*140*40 | φ7-φ10 | 7 | SC | 6 |
