Low Insertion Loss Fiber Optic Splitter 3 In 1 Out SC/APC Connector 1x3 Single Mode
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
5-8days
Brand:
UNIFIBER
Product Description

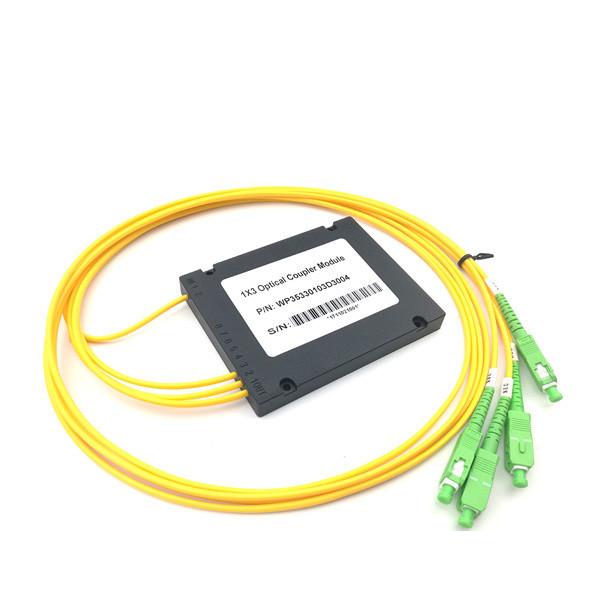

1x3 single mode 1310/1550nm optical fiber coupler, Low insertion loss 3 way optical splitter 3 in 1 out SC/APC connector
Dual window coupler (DWC) is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm. The DWC coupler has the same coupling ratio on both 1310nm and 1550nm communication windows, and with low excess loss and low PDL. DWC couplers are widely used for communication systems, CATV, and FTTH.
Specification
Low excess loss
Low PDL
Dual operating window
High stability and reliability
Low PDL
Dual operating window
High stability and reliability
Applications
Optical communication systems
CATV
FTTH
Optical communication systems
CATV
FTTH
| Parameter | Dual Window Coupler(DWC) | ||||
| Grade | P | A | P | A | |
| Operating wavelength (nm) | 1310 and 1550 | ||||
| Operating bandwidth (nm) | ±40 | ±80 | |||
| Typical excess loss (dB) | 0.07 | 0.1 | 0.07 | 0.1 | |
| Insertion loss (dB) | 50/50 | ≤3.6 | ≤3.8 | ≤3.8 | ≤4.0 |
| 45/55 | ≤4.2/3.2 | ≤4.4/3.4 | ≤4.5/3.3 | ≤4.7/3.5 | |
| 40/60 | ≤4.7/2.7 | ≤4.9/2.9 | ≤5.0/2.8 | ≤5.2/3.0 | |
| 35/65 | ≤5.4/2.4 | ≤5.7/2.6 | ≤5.8/2.5 | ≤6.1/2.7 | |
| 30/70 | ≤6.0/1.9 | ≤6.3/2.1 | ≤6.4/2.0 | ≤6.7/2.2 | |
| 25/75 | ≤7.0/1.7 | ≤7.3/1.9 | ≤7.3/1.7 | ≤7.7/1.9 | |
| 20/80 | ≤7.9/1.3 | ≤8.4/1.4 | ≤8.3/1.3 | ≤8.7/1.5 | |
| 15/85 | ≤9.5/1.0 | ≤10.0/1.2 | ≤9.6/1.0 | ≤10.1/1.2 | |
| 10/90 | 9.2~11.2/≤0.75 | 8.80~11.40 /≤0.8 | 9.15~11.05 /≤0.75 | 8.75~11.45/≤0.8 | |
| 5/95 | 12.05~14.15/≤0.4 | 11.60~14.60 /≤0.5 | 12.00~14.25/≤0.45 | 11.50~14.70/≤0.5 | |
| 3/97 | 14.1~16.5/≤0.35 | 13.60~17.05/≤0.45 | 14.00~16.60 /≤0.35 | 13.45~17.15/≤0.45 | |
| 2/98 | 15.75~18.45/≤0.3 | 15.15~19.00/≤0.4 | 15.60~18.60/≤0.3 | 14.95~19.20/≤0.4 | |
| 1/99 | 18.6~21.6 /≤0.25 | 17.95~22.25/≤0.35 | 18.35~21.85/≤0.25 | 17.60~22.55/≤0.35 | |
| PDL (dB) | ≤0.15 | ≤0.2 | ≤0.15 | ≤0.2 | |
| Directivity (dB) | ≥55 | ||||
| Operating temperature (℃) | -40 ~ +85 | ||||
| PackageDimension | 250μm bare fiber:Φ3.0×45mm 900μm loose tube:Φ3.0×54mm 900um/2mm/3mm loosetube:90×20×10mm | ||||
| *The above specification is without connector | |||||
| *Insertion Loss around 1380nm (water peak) is not counted in the specifications above. | |||||
