CATV 5 Way Fused Fbt Passive Fiber Splitter 1x5 Singlemode Optical Coupler Module

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 5-8days

Brand: UNIFIBER

Product Description

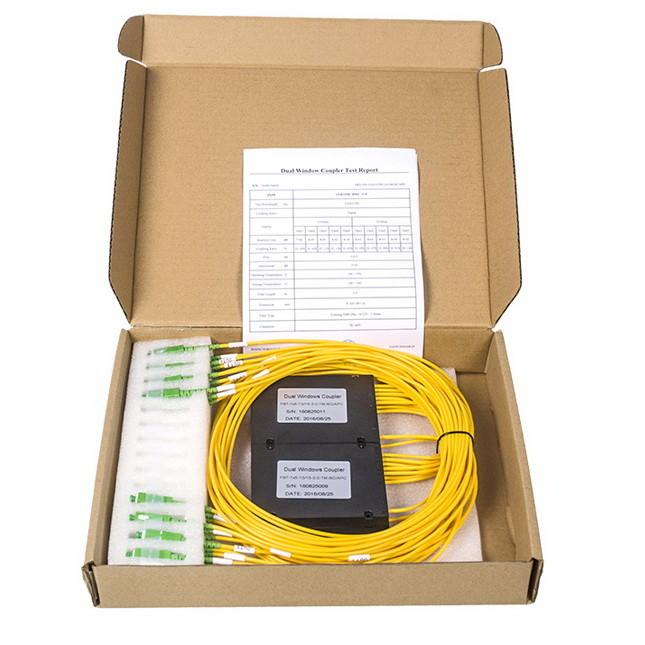

CATV 5 way fused FBT passive fiber splitter 1x5 singlemode optical coupler module with 20% splitting ratio
Dual window coupler (DWC) is built by asymmetric coupling technique. The operating bandwidth of this normal coupler is expanding to ±40nm, and the ultra broadband coupler is expanding to ±80nm. The DWC coupler has the same coupling ratio on both 1310nm and 1550nm communication windows, and with low excess loss and low PDL. DWC couplers are widely used for communication systems, CATV, and FTTH.

Specification

Low Insertion Loss
Low Excess Loss
Low PDL
Good Directivity
Good environmental Stability
Various Coupling Ratio
Compact Size

Standard/Flattened/Broadband/Star/Tree

Applications

Optical Fiber Communication Systems
Optical Fiber CATV
Passive Optical Network (PON)
Optical Amplifiers
Optical Access Networks/LAN
Monitoring Systems
Optical Fiber Sensor

1×3 MMC		3×3 MMC		1×4 MMC
Operating wavelength (nm)	850 or 1310,others on request
Operating bandwidth (nm)	±40
Port configuration	1x3,3x3or 1x4
Grade	P	A	P	A	P	A
Typical excess loss (dB)	0.7	1.0	1.0	1.3	0.9	1.2
Insertion loss (dB)	≤6.0	≤6.3	≤6.3	≤6.6	≤7.8	≤8.3
Uniformity (dB)	≤0.6	≤0.9	≤1.2	≤1.6	≤1.2	≤1.5
Directivity (dB)	≥40
Operating temperature (℃)	-40 ~ +85
Fiber type (um)	50/125 or 62.5/125 Multi-Mode or others
Package Dimension	250μm bare fiber: Φ3.0×45mm 900μm loose tube: Φ3.0×54mm 900um/2mm/3mm loose tube: 90×20×10mm
