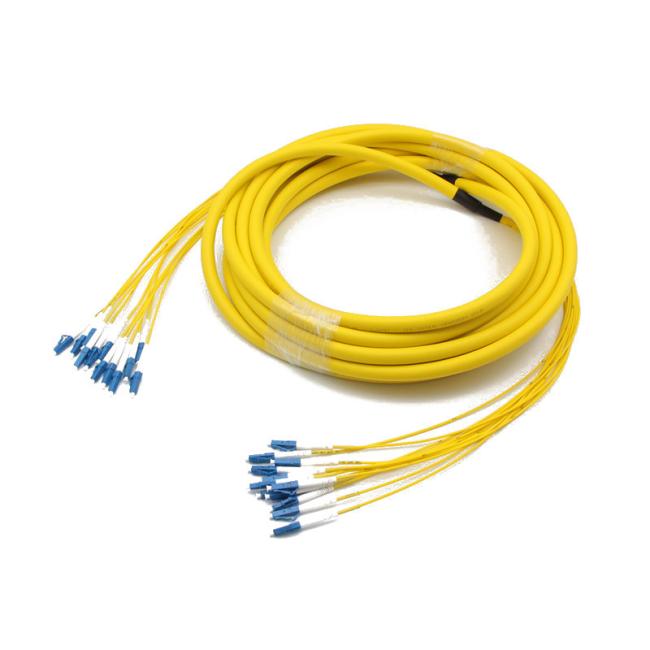

Multifiber Fiber Optic Breakout Cable 12 Core LC/UPC To LC/UPC For Indoor High Density Cabling

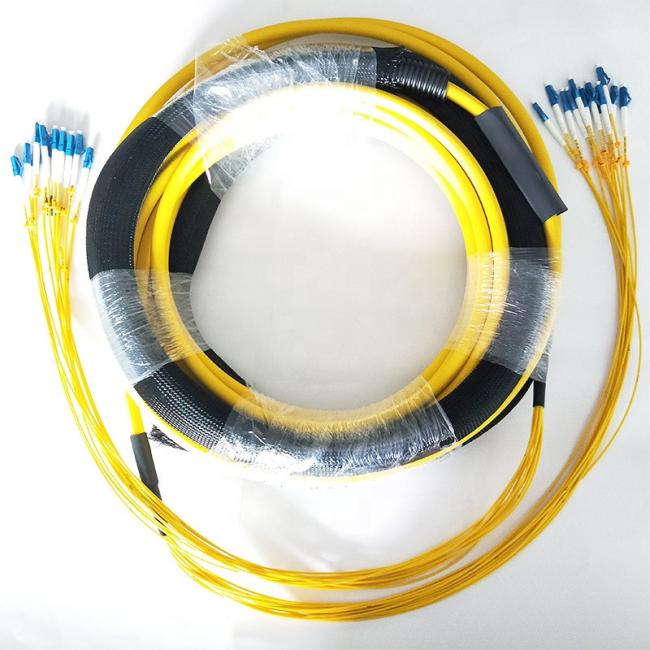

Multifiber pre-assembled cable 12 core LC/UPC to LC/UPC with 2.0mm fan-out pigtails for indoor high density cabling
Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. UNIFIBER provide multifiber cables with SC/LC/ST/FC connectors, with 0.9/2.0/3.0mm fan-out pigtails.
Features
0.9, 2.0, 3.0 fanout available
Stable capability and high reliability
Excellent mechanical capability
Small volume, high fiber density
4-144core available
High back reflection loss value
APPLICATIONS
Precise installations
Wide Area Networks (WANs)CATV
Active device termination
Telecommunication networks
Data processing networks
Local Area Networks (LANs)
Parameters
|
Item |
SingleMode |
MultiMode |
|
Insertion loss |
≤0.2dB |
≤0.3dB |
|
Return loss |
PC≥50dB, APC≥55dB, UPC≥60dB |
|
|
Insert-pull test |
1000 times |
|
|
Repeatability |
≤0.1 |
|
|
Tensile strength |
≥10kg |
|
|
Operating temperature |
-40℃~ +85℃ |
|
|
Ceramic ferrule spec |
125.5um concentricity deviations:≤1μm |
127um concentricity deviations:≤3μm |
|
Suitable fiber |
9/125μm |
50/125μm, 62.5/125μm |
