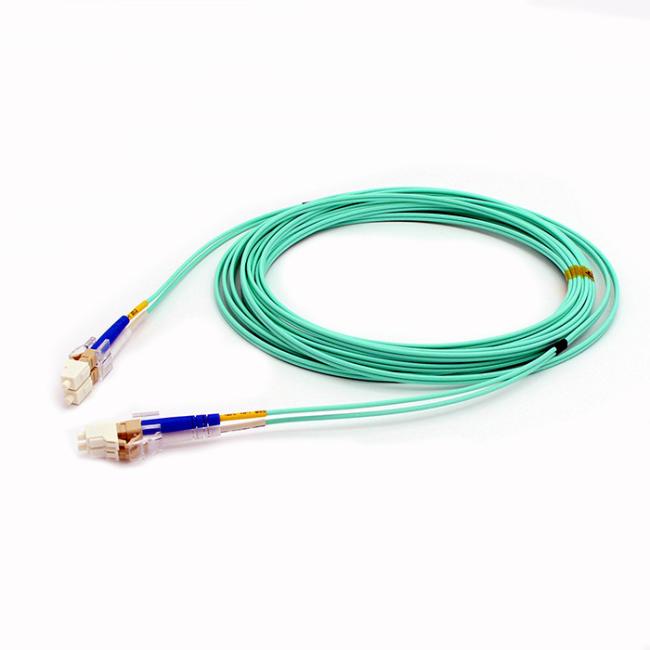

Dust Cap Cover Fiber Optic Patch Cord LC Molded Connector PVC LSZH OFNR Jacket

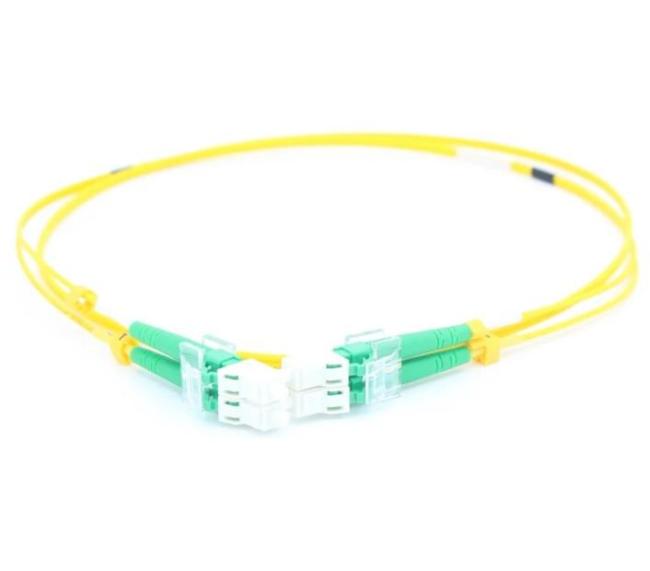

LC molded connector dust cap cover fiber optic patch cord, without making contact with the ferrule
The LC connector dust cap snaps onto the connector end without making contact with the ferrule, thereby keeping the ferrule endface clean and ready for mating with another ferrule through an adapter.
Connector Type: LC, FC, SC, ST, MU, MTRJ, E2000
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Fiber Types: Simplex, Duplex, Multicore
Fiber Mode: Single mode (G.652, G655), Multimode(OM1/OM2/OM3/OM4)
Cable Jacket: Armored/Military Tactical
Micro diameter stainless steel tube for protection
High resistance of tensile strength, pressure, rodent bite
Without damage by construction
Ensure transmission power and avoid additional attenuation
Prevent optic fiber from destroy by harsh environment
Prevent optic fiber from destroy by improper operation
All of our fiber optic patch cables feature the high degree connectors
100% optically tested to ensure high performance
FEATURES
Low insertion loss and back reflection loss
Good in repeatability
Good in exchange
Excellent mechanical endurance
Green Production, CE, RoHS Standard
1. Telecommunications
2. CATV, LAN, MAN, WAN, Test &Measurement
3. Military industry
4. Medical
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10kg | |
| Operating temperature | -40℃~ +85℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
