ODVA SC Bulkhead Fiber Optic Adaptor Waterproof IP67 For Fiberhub Terminal Box Enclosure
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3-5days
Brand:
UNIFIBER-OEM
Product Description

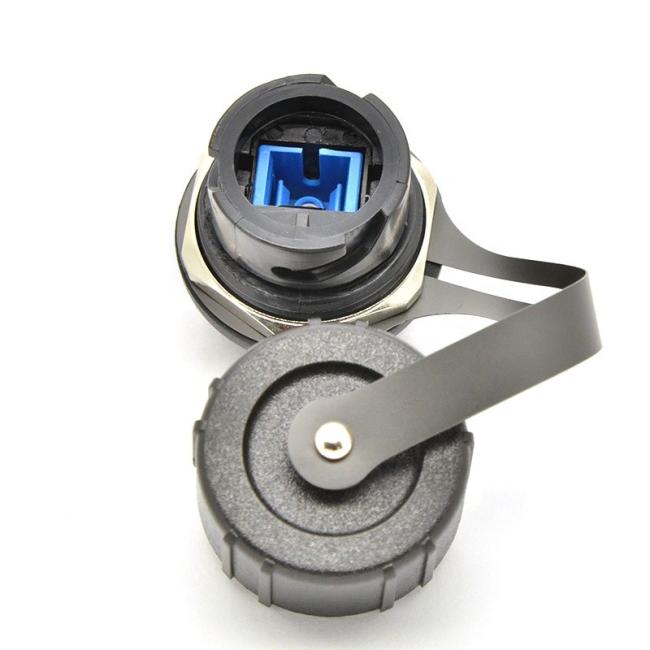

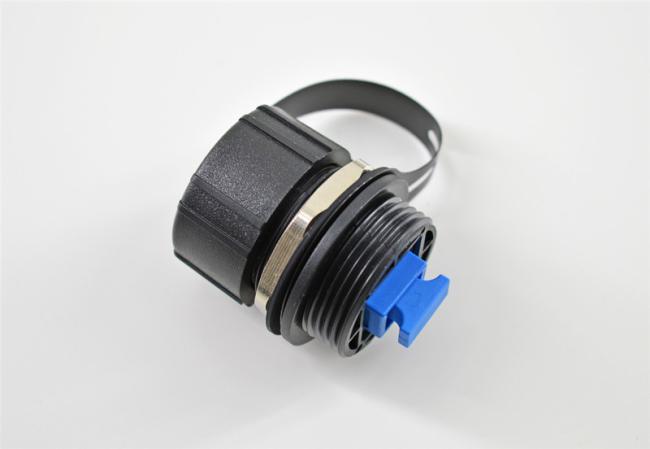

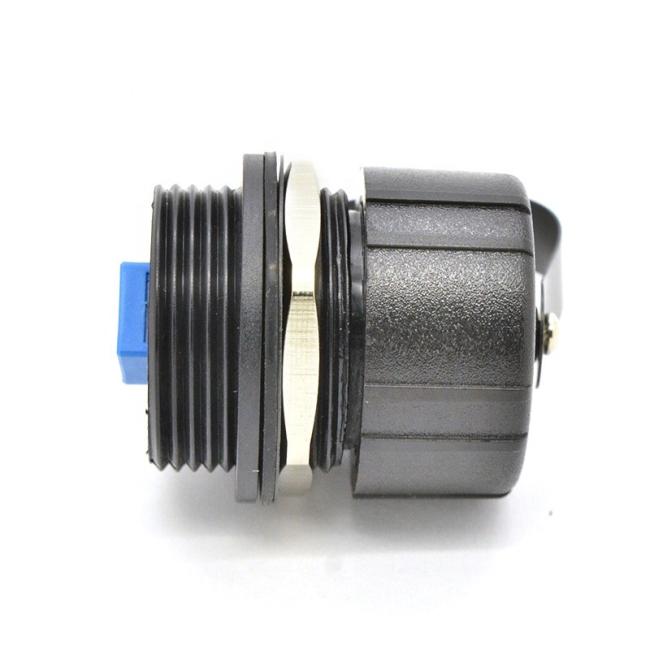

ODVA SC Bulkhead Fiber Optic Adaptor With dust cap, waterproof IP 67 for fiberhub terminal box enclosure
The ODVA SC waterproof adapter is used for harsh industrial or outdoor environments, mounts case side to panel or enclosure, female simplex singlemode SC pass-thru receptacle to female simplex SC connectors, quick-release quarter-turn bayonet locking to cable shield, gasket seals provide IP67 rated water tight and dust free protection.
Features:
Used to connect either PC or UPC polished SC Fiber cables.
Plastic body provides a light weight yet durable solution.
Stainless steel mounting clips allow for easy snap in installation.
Ceramic alignment sleeve supports Singlemode and Multimode applications.
Application
Fiber-to-the-Antenna (FTTA)
Automation and Industrial Cabling
Surveillance Systems
Broadcast
Military Communications
BBU, RRU, RRH, LTE
Operating Performance |
Outdoor SC ODVA Waterproof Adapter | |
| PC | APC | |
| Insertion Loss (dB) | < 0.3 | < 0.3 |
| Durability (500 Mating) (dB) | < 0.1 | < 0.1 |
| Operation Temperature (°C) | -40 to 80 | -40 to 80 |
| Retention Force (N) | 200-600 | 200-600 |
| Tensile Strength (kgf) | 10 | 10 |
| Housing Material | PC | PC |
| Mounting Style | Screw/Clip | Screw/Clip |
| Sleeve Alignment Material | Ceramic (Grade A) | Ceramic (Grade A) |
| Housing Color | Black | Black |
