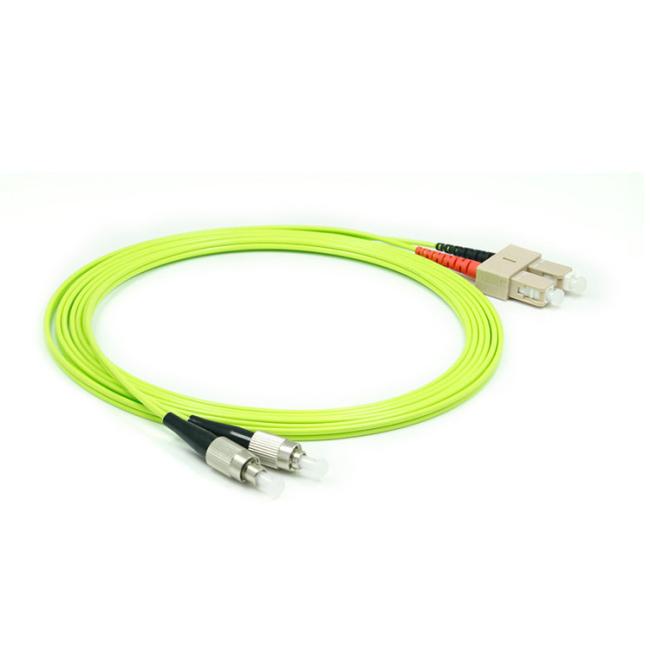

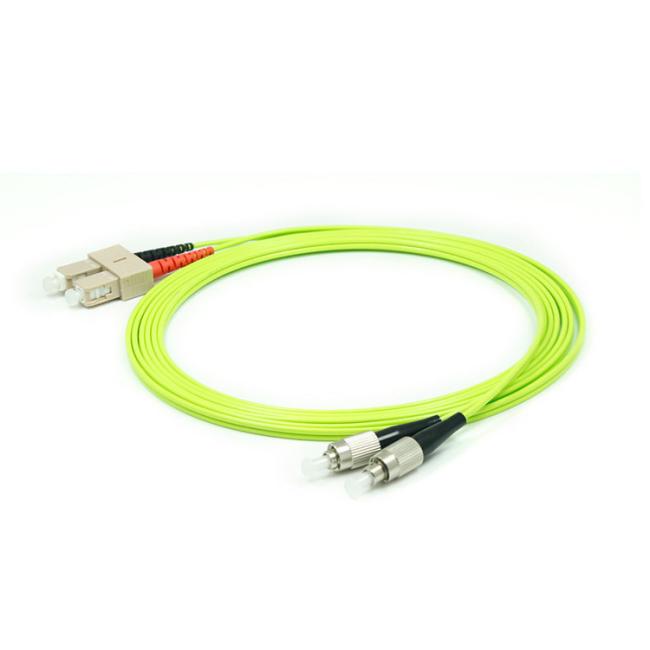

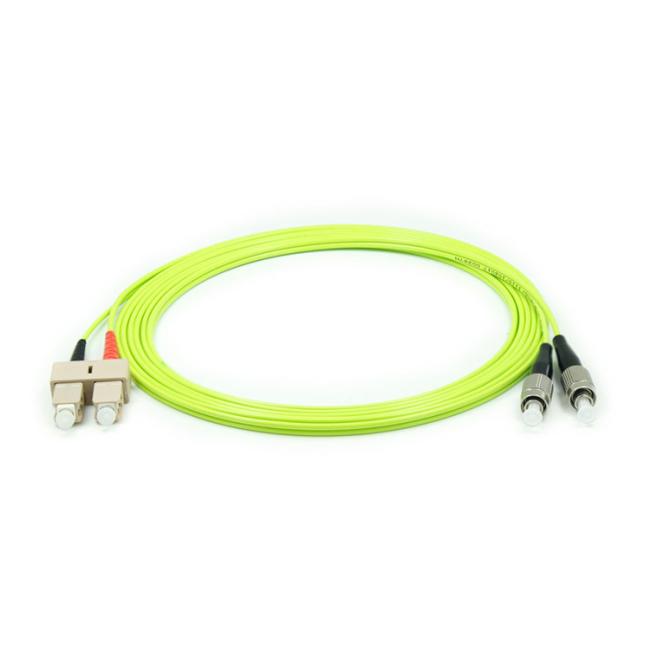

FC To SC Fiber Optic Network Cable Multimode 50/125um OM5 Low Insertion Loss
FC to SC multimode 50/125um OM5 fiber patch cord duplex Lime green color 10m 20m 30m, China OM5 patch cable manufacture
OM5 wideband multimode bend insensitive fiber optic cable is optimized for multi-wavelengths transmission systems operating in the range of 850-950nm, enabling optimal support of emerging Shortwave Wavelength Division Multiplexing (SWDM) applications that reduce parallel fiber count by at least a factor of four to allow continued use of just two fibers (rather than eight) for transmitting 40 Gb/s(up to 400m) and 100 Gb/s(up to 150m) and reduced fiber counts for higher speeds.
FEATURES
OS2 (9/125um), OM1 (62.5/125um), OM2 (50/125um),
OM3 (50/125um) OM4 (50/125um) OM5 (50/125um) are available.
Any length is available upon request.
For jacket, PVC (Riser) is normal and LSZH & Plenum are also available.
For cable type, G655 & G657 are also available.
Frequency bandwidth,large communication capacity.
Low insertion loss, low return loss, long transmission distance.
Good in repeatability and exchangeability
Various color cable available upon customers' request
Data Center Cabling
CATV, LAN, MAN, WAN, Test &Measurement
Medical
Parameters
| Range of Mode | Single mode or Multi mode |
| Cable Type | Simplex, Duplex Ziocord. or Multi-cores |
| Connector Style | SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc |
| Polish or Ferrule Interface Type | PC, UPC, APC |
| Cable Diameter | 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm |
| Outer Jacket | PVC /LSZH/OFNP |
| Jacket Color | SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green |
| Durability | 500 cycles(0.2 dB max increase). 1000mate/de mate cycles |
| Operating Temp. | -20 ℃ to +70℃/+85℃ (armored) |
| Storage Temp. | -40℃ to +85℃ |
