PVC LSZH Jacket Fiber Optic Patch Cables LC Duplex Uniboot OM4 High Density

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3-5days

Brand: UNIFIBER or OEM

Product Description

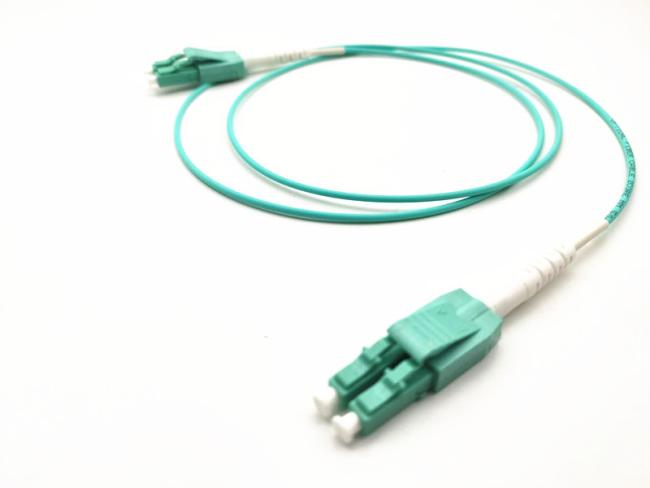

LC duplex Uniboot OM4 high density fiber optic patch cables, data center patch cords | UNIFIBER cabling solutions

The LC uniboot design allows one cable to carry both fibers, reducing cable congestion when routing, and is suitable to be used in high-density fiber patching in data centers which need space saving and reduce cable management troubles. Reverse-polarity design allows for quick and easy polarity conversion without exposing the fibers or needing any tools.In UNIFIBER, all sorts of uniboot LC cables are available. It can be customized with fiber types and cable diameters.

Features:
Bend insensitive fiber on all Multimode fibers, optional for Single Mode fibers
Available in OM3, OM4 and OS2

Flexible plenum rated jacket
Custom lengths, jacket colors and labeling optionsUniboot (one boot) design

Easily switch polarity without tools or damage to fiber

Application:

Data center ultra high-density cabling

Fiber optic communication networks

Optical access network

Telecommunication networks

Connector	LC to LC Uniboot Polarity Reversible	Jacket OD	3.0mm
Fiber Mode	OS2 9/125um OM3 OM4	Jacket Color	Yellow/Aqua / Violet / Purple
Polish	UPC to UPC	Wavelength	1310/1550nm or 850/1300nm
Fiber Type	Duplex	Jacket Material	LSZH / PVC / OFNP
Insertion loss	≤0.3dB	Attenuation at 850nm	3.0 dB/km
Return loss	≥30dB	Attenuation at 1300nm	1.0 dB/km
Operating temperature	-40~75°C	Storage temperature	-45~85°C
Polarity	A(Tx) to B(Rx)	Minimum Bend Radius	30 mm
