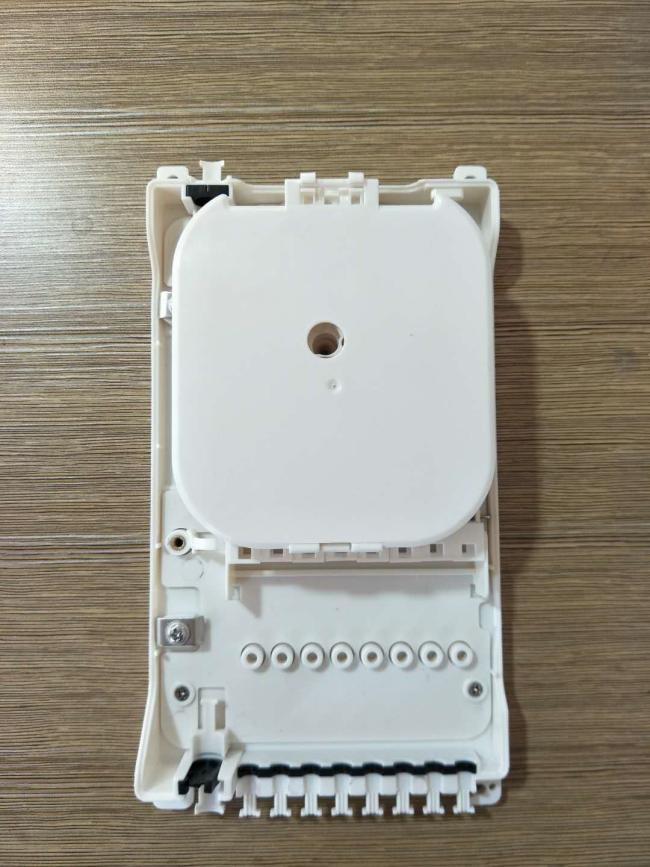

8 Ports SC/APC Adapters IP65 IP66 Fiber Optic Distribution Box
FTTH compact size termination box for fiber optic distribution 8 ports SC/APC adapters
OTFDB-108A distribution box is a box for fiber terminal distribution in optical fiber transmission and communication network. It can be 12 fibers splicing, protection and distribution. All material meets RoHS.
Application
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Features
Material: ABS plastic.
Can accommodate 1x4,1x8 PLC splitter.
Rainfall resistant, IP65 outdoor using.
Can load 12pcs LC, FC, ST, SC … adapters.
Wall mounting and pole mounting application.
2pcs cable entry ports with M20 cable gland (Max. cable diameter 12mm)
12pcs exit ports for FTTH drop cable.
Specification:
| Model | FDB-0416 |
| Dimension (A*B*C) | 230*125*50mm |
| Max.Capacity | 8cores (single fiber) |
| Cable ports | 1 cable in/out, 8 drop cable ports |
| Cable diameter | In:Φ7-12mm, out:2*φ3mm |
| Splitter quantity | 1x8 steel tube |
| Adapter quantity | 8 SC |
| Color | black /white |
| Protection level | IP65/IP66 |
