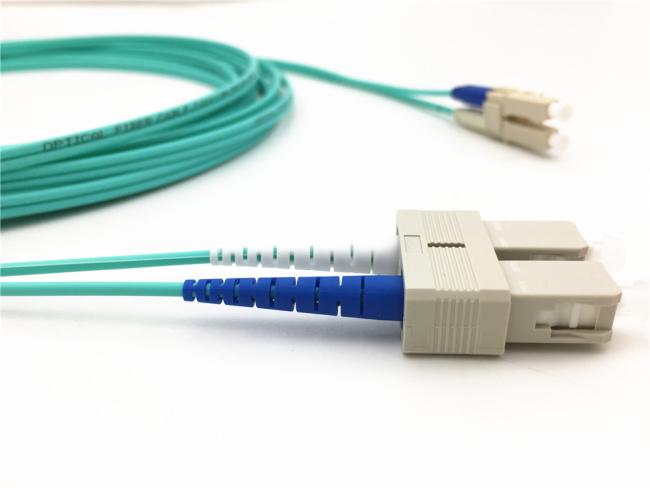

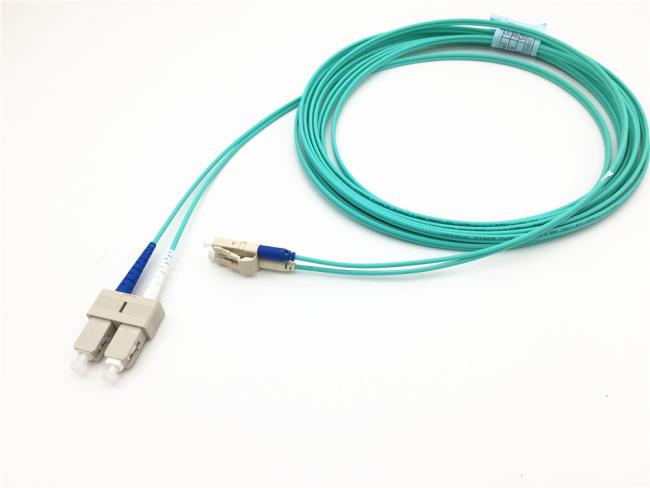

PVC/LSZH LC-SC Duplex Multimode OM3 Fiber Cable Assembly
LC-SC Duplex OM3 Multimode 50/125 Fibre Optic Cable Assemblies PVC/LSZH with blue and white boot Aqua color 1/2/3/5/7m
OM3 LC/SC Multimode Duplex Fiber Optic Patch cable features 50/125 micron fiber and supports high-bandwidth data transmission over a 10 Gigabit Ethernet connection. It supports 10G/40G/100G Ethernet connections and is the preferred fiber specification for 10G Ethernet connections.It can save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.UNIFIBER supply this with several lengths of LC-LC OM3 Multimode Fibre Optic Patch Leads including 1 metre, 2 metre, 3 metre, 5 metre and 10 metre.
FEATURES
Low insertion loss and back reflection loss
Good in repeatability
Good in exchange
Green Production, CE, RoHS Standard
Data centers
Parameters
| Item | SingleMode | MultiMode |
| Insertion loss | ≤0.2dB | ≤0.3dB |
| Return loss | PC≥50dB, APC≥55dB, UPC≥60dB | |
| Insert-pull test | 1000 times | |
| Repeatability | ≤0.1 | |
| Tensile strength | ≥10kg | |
| Operating temperature | -40℃~ +85℃ | |
| Ceramic ferrule spec | 125.5um concentricity deviations:≤1μm | 127um concentricity deviations:≤3μm |
| Suitable fiber | 9/125μm | 50/125μm, 62.5/125μm |
