Male To Female Fixed 9/125um Fiber Optic Attenuator

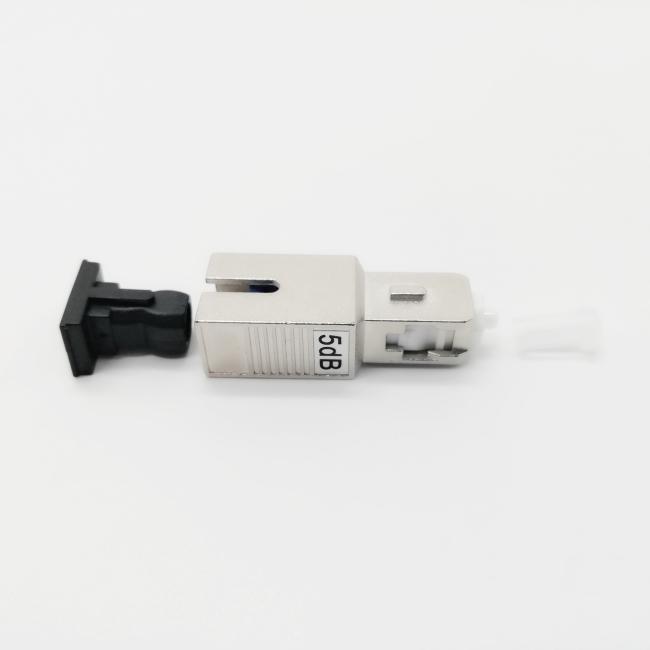

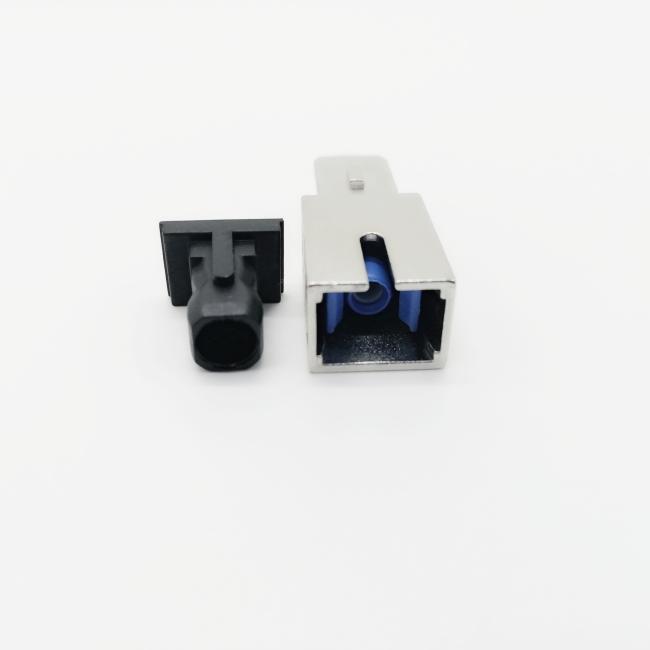

SC/UPC Male to Female build out attenuator with fixed attenuation from 1 to 25dB, Singlemode 9/125um 1310nm/1550nm
Singlemode 9/125um, Male-Female attenuators contain doped fiber suitable for both 1310nm and 1550nm operation. Fixed attenuation values are available in 1dB increments from 1 to 25dB. Fiber optic attenuators are used in the fiber optic links to reduce the optical power at a certain level. We supply various kinds of fiber attenuators, including LC, SC, and ST, FC, MU and Variable fiber optic attenuators.female to male attenuator also called a plug fiber attenuator. They are with ceramic ferrules and there are various types to fit different kinds of fiber optic connectors.
Features:
Exact and Stable Attenuation
High Return Loss
Removable structure, easy to repair
Suitable for panel installation
Application:
Telecommunication
CATV
LAN & WAN
Network
Broadband
FTTP
Specification
| tem | Parameter |
| Model | Fixed, Female&Male, In-line, Variable |
| Operating Wavelength | SM:1310/1550nm MM: 850/1300nm |
| Attenuation Range | 1~30dB |
| Return Loss | PC:≥50dB UPC: ≥55dB APC: ≥60db |
| Attenuation Tolerance | ≤+/-0.5(1-10dB) or ≤+/-1.0(11-30dB) |
| Maximum Optical Input Power | 1000mW |
| Polarization Dependent Loss | ≤0.1dB |
| Working Temperature | -40°C~+75°C |
| Storage Temperature | -40°C~+ 85°C |
| Humidity | 95%RH |
