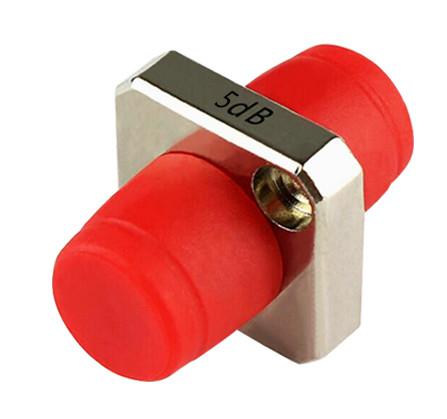

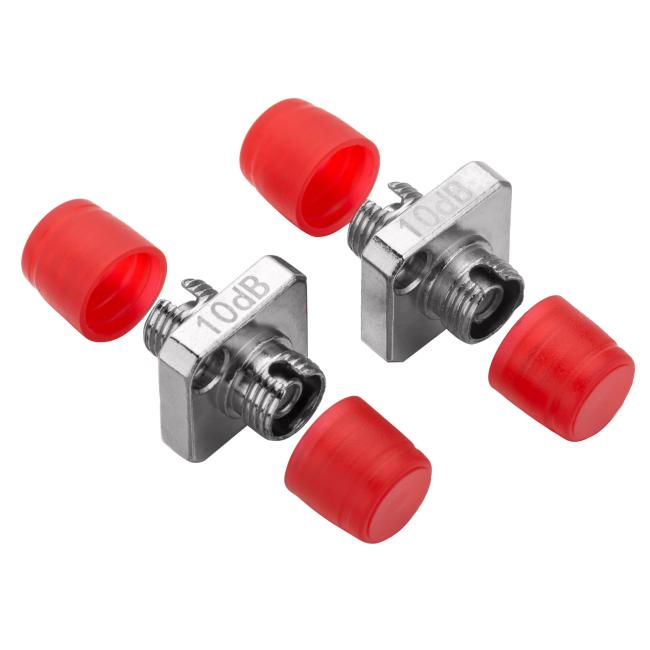

1310/1550nm Single Mode FC Fixed Flanged Fiber Optic Attenuator
Price:
Negotiable
MOQ:
100pcs
Delivery Time:
3~5 business days
Brand:
UNIFIBER-OEM
Product Description
FC Fixed Flanged Fiber Optic Attenuator Single Mode Female To Female accurate attenuation 1~25dB
Fiber Optic attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Features
Low insertion loss
High return loss
Ease of installation
Low cost
Reliability
Low environmental sensitivity
Application
Fiber Optical network system
High speed fiber optical transmission system
CATV system
Long distance DWDM system
Optical add-drop multiplexers(OADM)
| Attenuation Value 1dB ~ 30dB | |
| Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm) | |
| Premium | |
| Return Loss | UPC >55dB |
| APC >65dB | |
| Attenuation Accuracy |
1 ~ 7 dB ±0.5dB |
| 8 ~ 12 dB ±0.7dB | |
| 13 ~ 17 dB ±1.0dB | |
| 18 ~ 25 dB ±1.3dB | |
| Maximum Optical Input Power 1000mW | |
| Polarization Dependent Loss ≤0.1dB | |
| Operating Temperature Range -40 to 75 | |
| Storage Temperature Range -40 to 85 | |
| Humidity 95%RH | |
