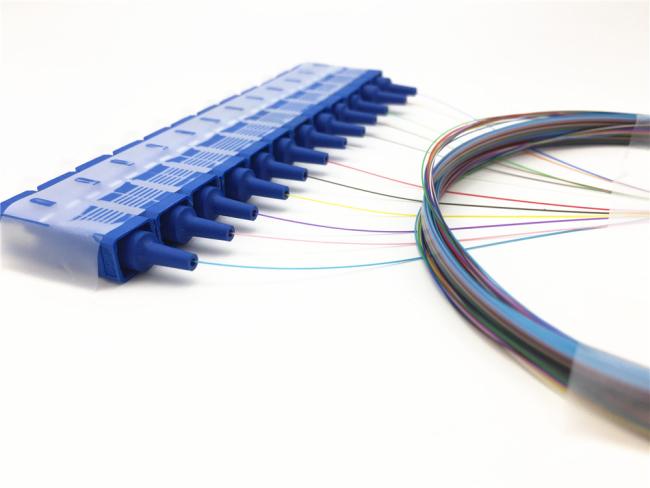

Singlemode 12 Core Ribbon Fanout 250um Fiber Optic Pigtail
12 core Ribbon Fanout Pigtail 250um colored bare fiber, Singlemode, SC/UPC, 3 Meters
UNIFIBER provide includes 1fiber, 4/6/8/12 core fiber optic pigtails with 250um,900um with fan-out for your splicing application, with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with PVC or LSZH jacket.
FEATURES
Different fiber diameter for option: 250um bare fiber,0.9mm, 2mm or 3mm
Single fiber or Multi-fiber 4/6/8/12 core Optional
SC,LC,FC,ST connector with UPC or APC polished
Any length is available: 1m,1.5m or other length you required.
Telecom level and insertion loss below 0.3 db.
APPLICATION
Fiber to patch panels and enclosures
High fiber count splicing applications
Data Center
Telecommunications
CATV, LAN, MAN, WAN, Test &Measurement
Parameters
| Parameter | Singlemode Fiber | Multimode Fiber | ||
| PC | UPC | APC | PC | |
| Insertion Loss(dB) | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return Loss(dB) | ≥45 | ≥50 | ≥60 | ≥20 |
| Exchangeability(dB) | ≤0.2 | |||
| Plug-pull life(times) | ＞1000 | |||
| Operating temperature(℃) | -40~+75 | |||
| Storage temperature(℃) | -45~+80 | |||
| Fiber model | φ0.9mm, φ2.0mm, φ3.0mm | |||
