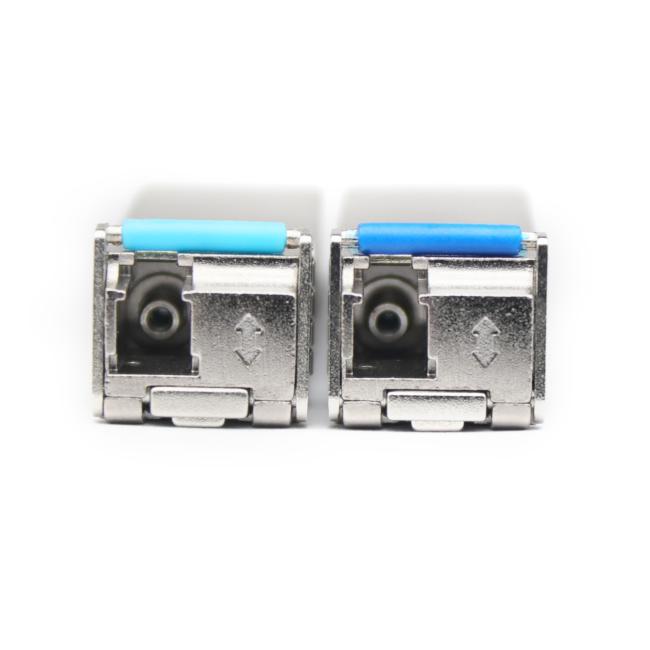

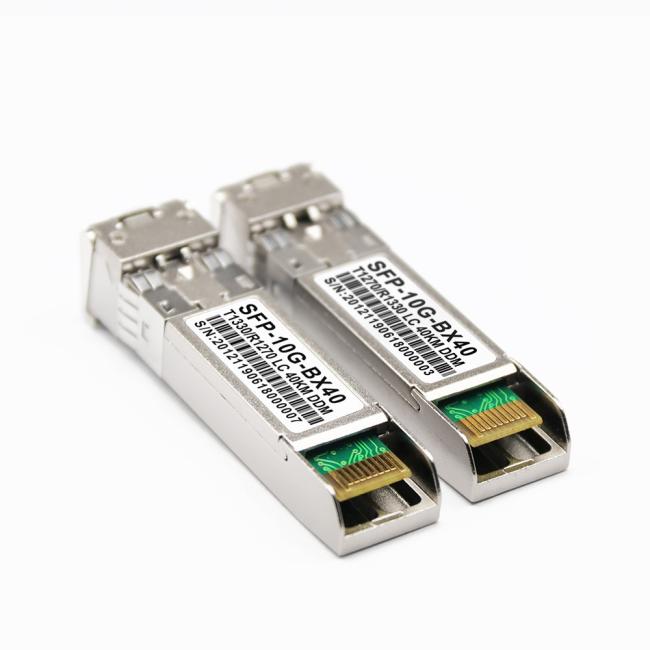

SM SFP+ BIDI T1270/R LC 40km DDM Fiber Optic Transceiver

Optical transceiver SFP+ SM BIDI T1270/R1330nm LC 40km DDM Compatible with the Juniper

BIDI SFP+ Transceivers are Small Form Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps,it designed to be compliant with SFF 8472 and SFP+ MSA. The module data link up to 10km or 40km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

FEATURES :

Up to 10,7Gbps Bi-directional Data Links
Compliant with SFP+ MSA with duplex LC connector
1270/1330nm DFB laser Transmitter and 1330/1270nm PIN Receiver
Built-in digital diagnostic functions
Single Mode LC Receptacle Bi-directional Transceiver
Single +3.3V Power Supply and LVTTL Logic
EEPROM with Serial ID Functionality
Case operating temperature range: -5°C to 70°C

APPLICATIONS :
Switch to Switch interface

Switched backplane applications

Router/Server interface

Fiber Channel

Ordering Information:
