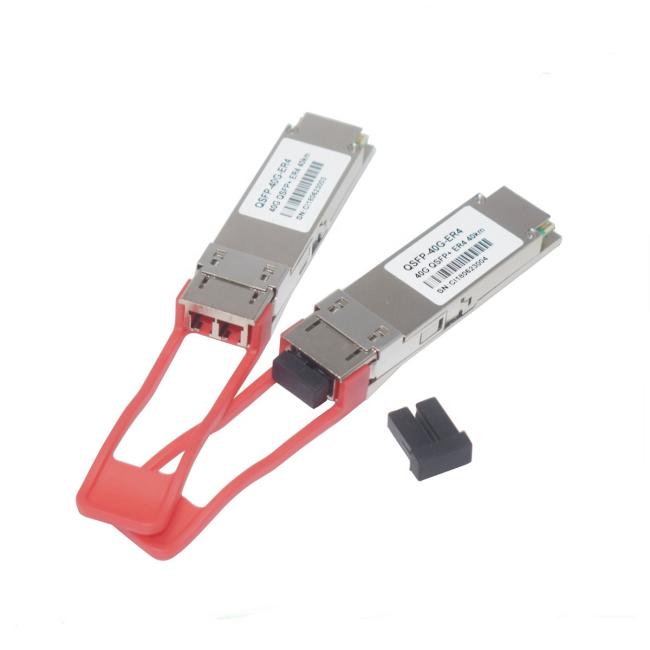

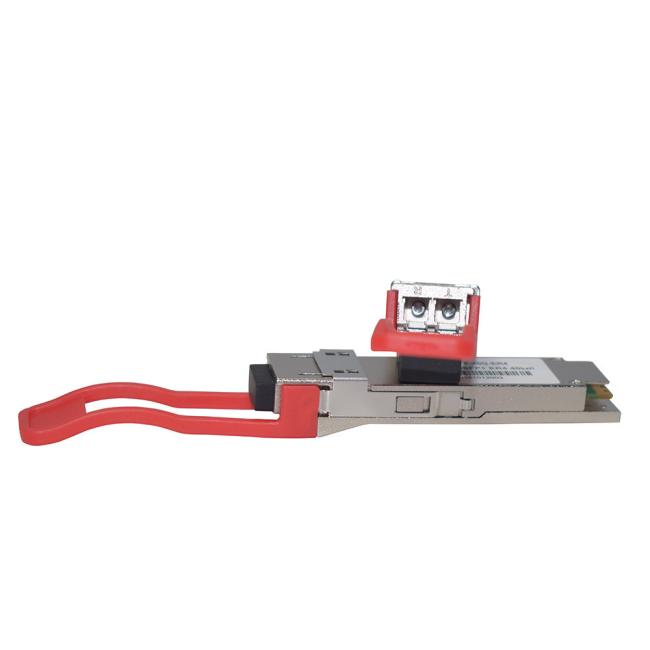

DDM 40G QSFP+ ER4 40KM CWDM LC Fiber Optic Transceiver
40G QSFP+ ER4 40KM CWDM LC fiber transceiver with DDM
40G QSFP+ transceivers include SR4, eSR4, LX4, LR4 Lite, IR4 PSM, LR4 PSM, LR4, ER4 and BiDi series.
Features :
4 CWDM lanes MUX/DEMUX design
Up to 11.2Gbps per channel bandwidth
Aggregate bandwidth of > 40Gbps
Duplex LC connector
Compliant with 40G Ethernet IEEE802.3ba and 40GBASE-ER4 Standard
QSFP MSA compliant
APD photo-detector
Up to 40 km transmission
Compliant with QDR/DDR Infiniband data rates
Single +3.3V power supply operating
Built-in digital diagnostic functions
Temperature range 0°C to 70°C
RoHS Compliant Part
Applications :
Rack to rack
Data centers Switches and Routers
Metro networks
Switches and Routers
40G BASE-ER4 Ethernet Links
| ordering information | |
| Part Number | Product Description |
| QSFP-40G-SR4 | QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
| QSFP-40G-LR4 | QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
| QSFP-40G-ER4 | QSFP+, 40Gb/s, 40GBASE-ER4, SMF, 1270~1330, LC CWDM4 |
