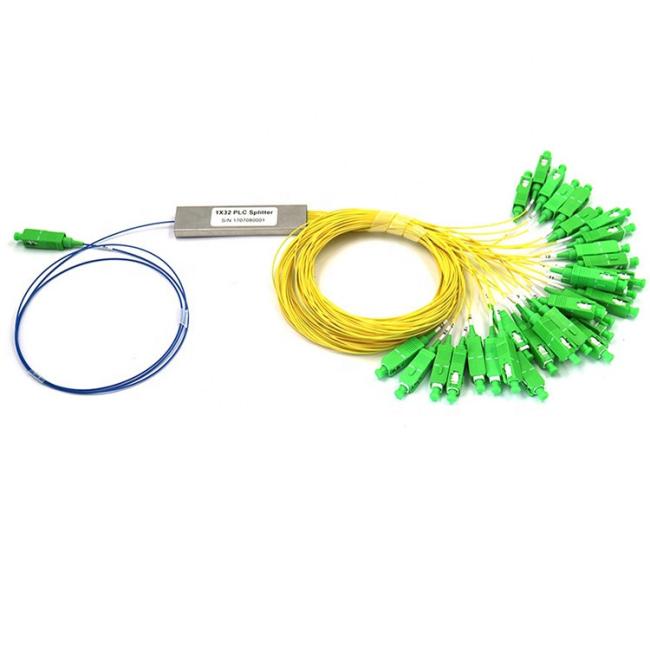

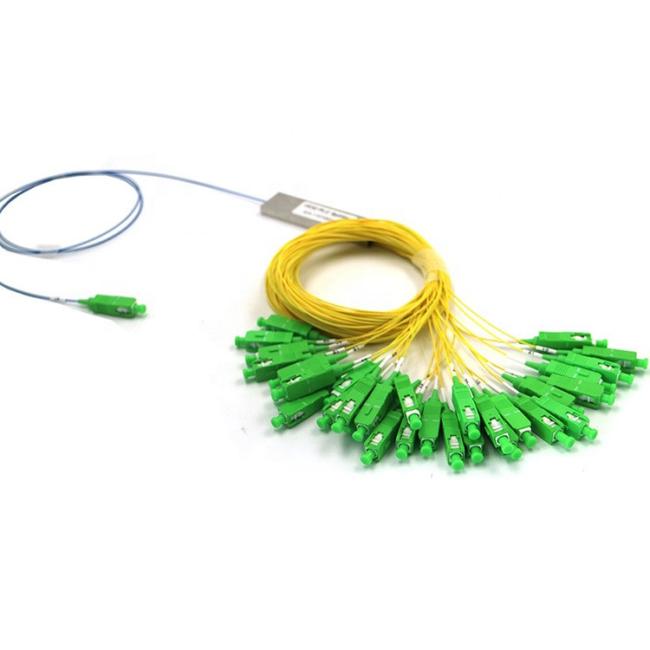

900um Loose Tube FTTH 1x32 PLC Fiber Optic Splitter
FTTH 1x32 PLC splitter mini steel tube LC/APC with 900um loose tube yellow colored on output
PLC Splitter means planar light-wave circuit splitter, which is based on planar light wave technology, widely used in FTTX,EPOM,BPON,GPON .We launched 1xN,2XN PLC splitter with consistent performance, low optical Insertion loss, high reliability and stability , superior environmental and mechanical characteristics, and fast installation. They also enable more effective monitoring and management of fiber optical networks. All wavelengths (1260-1620nm) are not sensitive. And our products meet Telcordia 1209,1221 standard ,ROHS.
FEATURES
Compact Design
Wide Operating Wavelength: From 1260nm to 1650nm
High Reliability and Stability
Low Insertion loss and PDL
Good channel-to-channel uniformity
APPLICATION
CATV
Optical Signal Distribution
FTTX Systems
PON Networks
Specification
| Parameters | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 | 1×128 |
| Operating wavelength | 1260 ~1650nm | ||||||
| Insertion Loss (dB)(P/S Grade) | 3.6/4.0 | 7.2/7.4 | 10.2/10.5 | 13.5/13.7 | 16.2/16.7 | 20.5/21 | 23.8/24.5 |
| uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.0 | 1.2 | 1.8 | 2.0 |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.5 |
| Return Loss (dB) | ≥55 | ||||||
| Directivity (dB) | ≥55 | ||||||
| TDL(dB) | 0.5 | ||||||
| Operating/Storage Temperature (℃) | -40~85 | ||||||
Specifications (2XN):
| Parameters | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | 2×128 | |
| Operating wavelength | 1260 ~1650nm | |||||||
| Insertion Loss (dB)(P/S Grade) | 3.8/4.2 | 7.5/7.8 | 10.7/11 | 14/14.2 | 17/17.5 | 21/21.5 | 25/25.5 | |
| uniformity (dB) | 0.6 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 | |
| PDL (dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | |
| Return Loss (dB) | ≥55 | |||||||
| Directivity (dB) | ≥55 | |||||||
| TDL (dB) | 0.5 | |||||||
| Operating/Storage Temperature (℃) | -40~85 | |||||||
| Note: All the data above does not include connector | ||||||||
