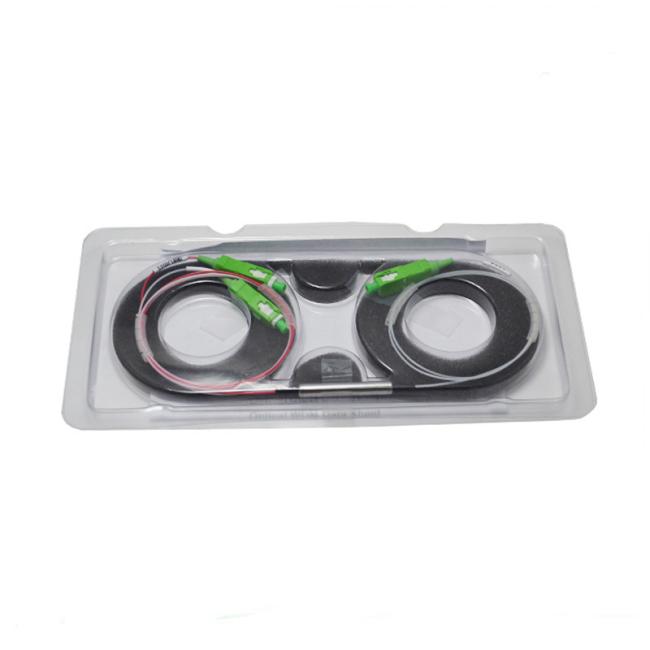

980/1550nm Steel Tube 3 Ports SC/APC FWDM Device
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3-5days
Brand:
UNIFIBER
Product Description
High Isolation 3 Ports FWDM 980/1550nm,1480/1550nm, Steel tube SC/APC
Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Features:
Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path
Application:
Fiber optical Amplifier
Access Network
Line monitoring
Telecom munication
Cellular Application
Parameter
| Parameter | FWDM 4/35 | FWDM 5/34 | FWDM 3/45 | FWDM 34/5 | |
| Pass Band Wavelength Range (nm) | 1480~1500 | 1540~1560 | 1260~1360 | 1260~1360 & 1480~1500 | |
| Reflection Band 1 Wavelength Range(nm) | 1260~1360 | 1260~1360 | 1480~1500 | 1540~1560 | |
| Reflection Band 2 Wavelength Range (nm) | 1540~1560 | 1480~1500 | 1540~1560 | ||
| Insertion Loss(dB) | Reflect Channel | ≤0.6 | |||
| Pass Channel | ≤0.8 | ||||
| Insertion Loss Variation(dB) | <0.3 | ||||
| Isolation(dB) | Pass Channel | >15 | |||
| Reflect Channel | >30 | ||||
| Inertion Loss Temperature Sensitivity(dB/℃) | <0.005 | ||||
| Polarization Dependent Loss(dB) | <0.1 | ||||
| Polarization Mode Dispersion(ps) | <0.1 | ||||
| Directivity(dB) | >50 | ||||
| Return Loss(dB) | >50 | ||||
| Maximum Power Handling(mW) | 500 | ||||
| Opterating Temperature(℃) | -20~+70 | ||||
| Storage Temperature(℃) | -40~+85 | ||||
| Package dimension(mm) | Φ5.5x34 (L38 for 900um Loose tube) | ||||
1,Above specifications are for devices without connector.
2,Specifications may change without notice.
