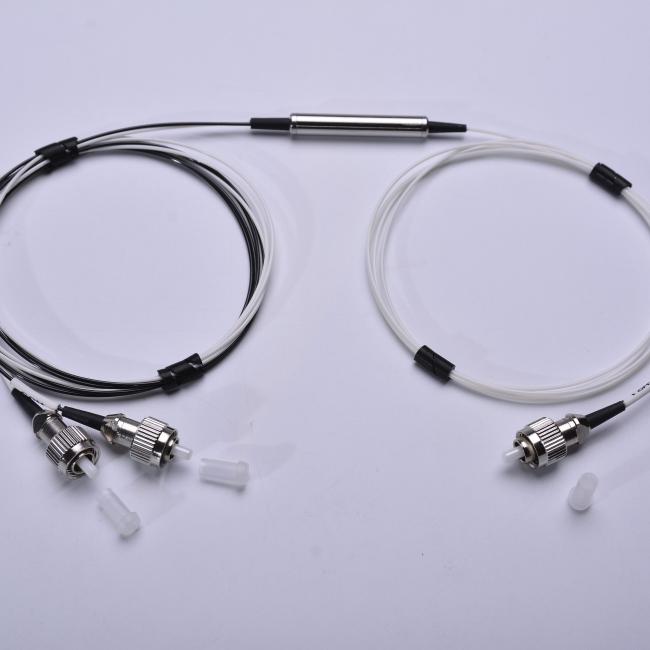

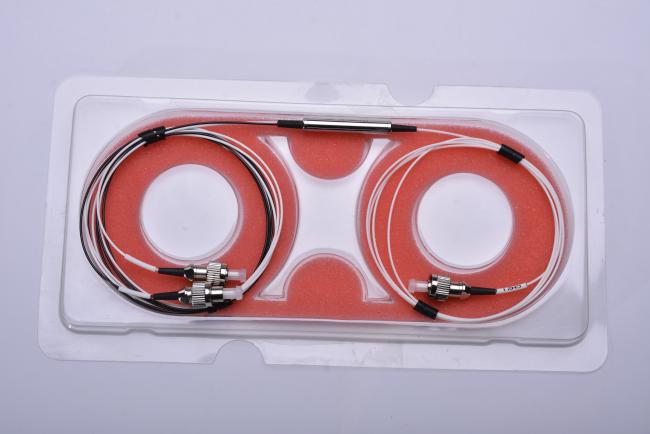

1310 1490 1550nm 3 Ports SC/APC Filter WDM device
Price:
Negotiable
MOQ:
10pcs
Delivery Time:
3-5days
Brand:
UNIFIBER
Product Description

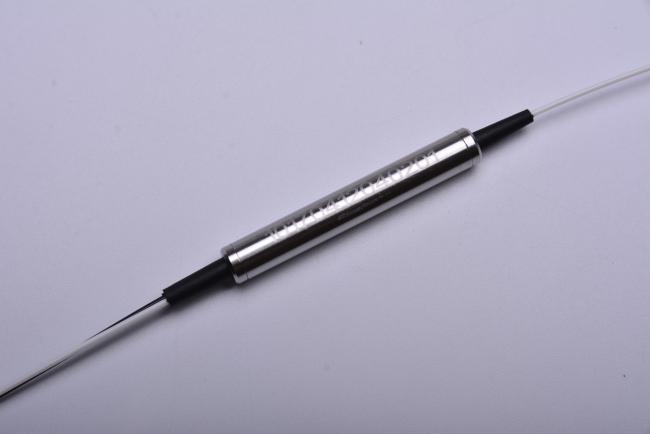

High Isolation 3 Ports FWDM 980/1550nm,1480/1550nm, Steel tube SC/APC
Micro-Optics WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.
Features:
Low Insertion Loss
High channel Isolation
Wide pass band
High reliability and stability
Epoxy free on optical path
Application:
Fiber optical Amplifier
Access Network
Line monitoring
Telecom munication
Cellular Application
| Parameters | Specification | Unit | |
| Reflected port Wavelength | 1260~1360&1480~1500 | nm | |
| Transmitted port Wavelength | 1550~1560 | nm | |
| Reflected port Insertion Loss | ≤1.0 | dB | |
| Transmitted port Insertion Loss | ≤1.0 | dB | |
| Reflected Isolation @1550~1560nm | ≥20 | dB | |
| Transmitted Isolation@1260~1360&1480~1500nm | ≥30 | dB | |
| Polarization Dependent Loss | ≤0.2 | dB | |
| Polarization Mode Dispersion | ≤0.25 | ps | |
| Return Loss | ≥45 | dB | |
| Directivity | ≥50 | dB | |
| Operating Temperature | -40 to 85 | °C | |
| Storage Temperature | -40 to 85 | °C | |
| Connector Type | COM & 1550nm ports | SC/APC(Simplex) | - |
| 1310 &1490nm port | SC/UPC(Simplex) | ||
| Fiber Type | Corning G.657 A1 fiber | - | |
| Package Dimensions | 1U LGX | - | |
