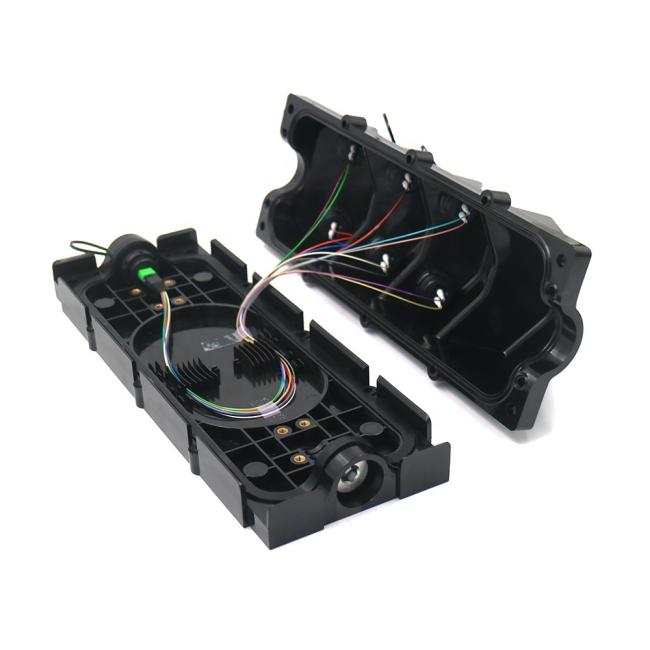

4 6 8 12 Ports IP68 FTTA Fiber Optic Termination Box
4/6/8/12/24 ports IP68 FTTA Enclosure Box with OptiTap compatible waterproof MPO to Duplex LC connectors
FTTX box is a new economic fiber distributed solution for outdoor use. Compare traditional products, FTTX Enclosure is easy to operate and has high compatibility. It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation.FTTX Enclosure not only used in FTTH field, but also used in FTTA or other harsh environment.
Features
Factory-sealed or field assembly.
Strong enough: working under 1200N pulling force long term.
IP68 waterproof rating.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice sleeve for fiber divide .
High compatibility: can be assembled ODVA, Hconn, Mini SC, PTLC, PTMPO or power adapter.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Specification
| Dimensions(LxWxH) | 365x137x90mm(Without cover) 375x142x120mm(With cover) |
| Ingress protection | IP67 |
| Temperature range | -40~80℃ |
| Cable strength member | Armoured or Non-armoured |
| Cable type | Hybrid or non-hybrid |
| Round cable OD | 5.0mm to 14.0mm |
| Flat cable dimension | 4.6x8.9mm |
| Cable jacket material | LSZH,PE or TPU |
| Bending Radius | 20D |
| Cable crush resistance | 200N/cm long term |
| Tensile strength | 1200N long term |
| UV resistance | ISO 4892-3 |
| Fire protection rating | UL94-V0 |
| Number of PLC | 1to 2pcs |
| Number of fusion protection steeve | 1to 24pcs |
