G657A2 Drop Cable SC/APC FTTH Fiber Optic Enclosure Box
FTTH Wall Outlet box 4 ports SC/APC with G657A2 drop cable white color 10m,15m,20m,30m,40m,50m,60m,70m

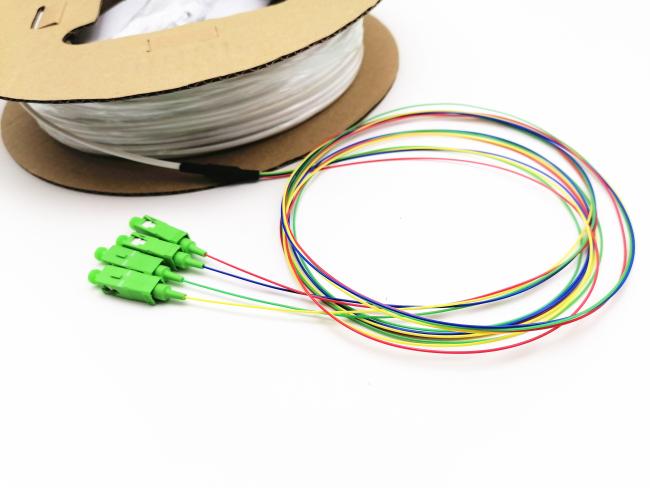

Preterminated drop cable instegrated with ONT(Optic Network Termination) composed of 1,2 or 4 fiber directly connected to SC APC inside of wall outlet, it provides very quick and secured installation from the subscriber to the floor box or multi dwelling unit, On one side of drop cable are mounted in the box directly mounted connectors (no splice) and the second side of drop cable is open. Stapling and doorway angle are made possible through appropriate design and integration of fiber with low curvature radius(G657A2)
Application
Local area networks
Wide area networks
Fiber to the home(FTTH)
Fiber to the building(FTTB)
Features
Support termination, splicing and storage for fiber optic cable systems
Installation of wall outlets on wall or DIN rail mounting
Easy for installation
Different length of cable avaliable
Manager 1,2,or 4 cores in one box

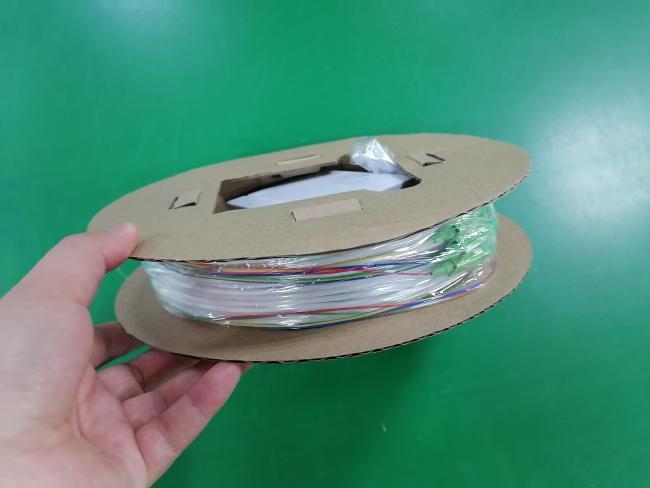

Cable on the cardboard and put in a small carton
Anti-UV, ultra violet resistant and rainfall resistant
Specifications
| Cable Length | 10,15,20,30,40,50,60,70m...or Specify |
| Size(mm) W*D*H | 100.5*80.5*29mm |
| Color | White |
| Cable Ports | 1/2/4 |
| Max capacity of splice | 4(single fiber) for SC, 8port for LC |
| Adapter type | SC/UPC, SC/APC,LC/UPC,LC/APC |
| Material | PC+ABS |
