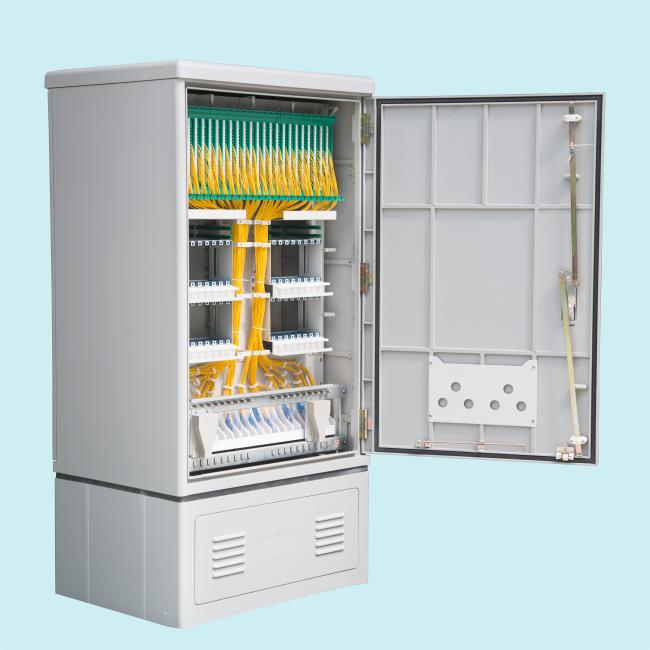

IP65 Outdoor optical distribution cabinet 144/288/576 cores

This cabinet is widely used in FTTX access network.It provides splice,storage,termination,splitting,customer cable routing functions etc.,without cables patching,which effectively solves the problems resulted by traditional distribution devices,less adaptors and patch cords,less loss rate and defect points,safer network,more capacity,convenient for cable management and upgrading,cost saving,and promoting the development of optical fibers.

Features:

Less adaptors and patch cords,less defect points and loss rate,safer network.
Offer an effective way for splitter management and capacity upgrading.
Pigtails in distribution area with length of 2 meters,equipped with pigtails management unit,clear for identification.
Add splitter splitting unit,to meet the demand of point-to-point,point-to-multiple points.
Modular design,flexible for operation,and cost saving.
With capacity of 144cores,288 cores and 576 cores.

Specification:

Material: Cold-roll steel
Nominal work wave-length: 850nm, 1310nm, 1550nm
Protection level: IP65
Work Temperature: -45℃-+85℃
Relative humidity:≤85%(+30°C)
Atmospheric pressure: 70~106 KPa
Insertion loss: ≤0.2dB
Return loss:≥45dB (PC), ≥50dB(UPC), ≥60dB(APC)
Isolation resistance(between frame and protection grounding):>1000 MΩ/500V(DC)
Durability:≥1000 times
Anti-voltage strength: ≥3000V(DC)/1min

Application:

FTTH (Fiber To the Home) access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks
Suitable for Telekom UniFi.


Dimensions:
