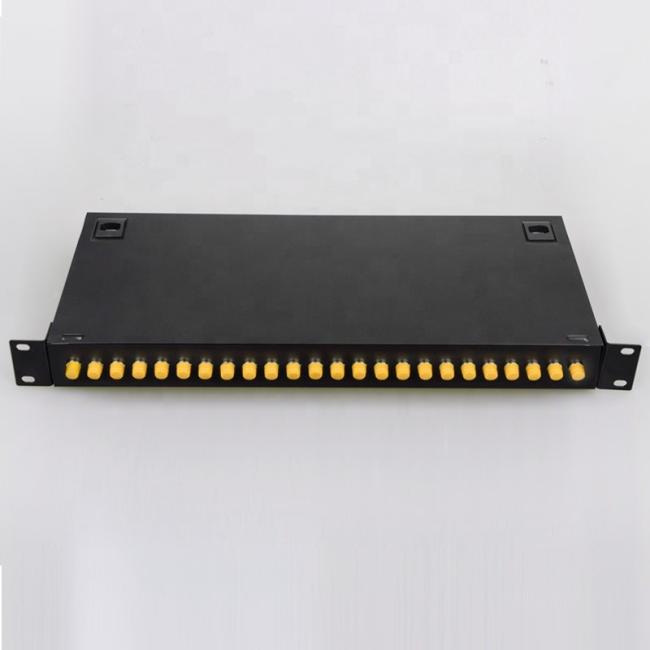

ST Connector 12 24 Port 19 Rack Mount Fiber Patch Panel
19 rack mount fiber patch panel 12 / 24 port ST connector
The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.
Features:
Standard size, 19" or 23" rackmount installation
Various panel plate to fit different adapter interface
Suitable for ribbon and single fiber
Splice tray inside changeable
Front mark on the plate is easy for identification and operation
Application:
Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV
Order information:
| Model | Fiber Quantity | Height | Dimension(cm) | Weight(Kg) |
| ODF-RS12 | 12 | 1U | 45x 32x4.45 | 4 |
| ODF-RS24 | 24 | 1U | 45x 32x4.45 | 4.2 |
| ODF-RS48 | 48 | 2U | 48x32x8.9 | 4.31 |
| ODF-RS96 | 96 | 2.5U | 48x32x11 | 5.05 |
