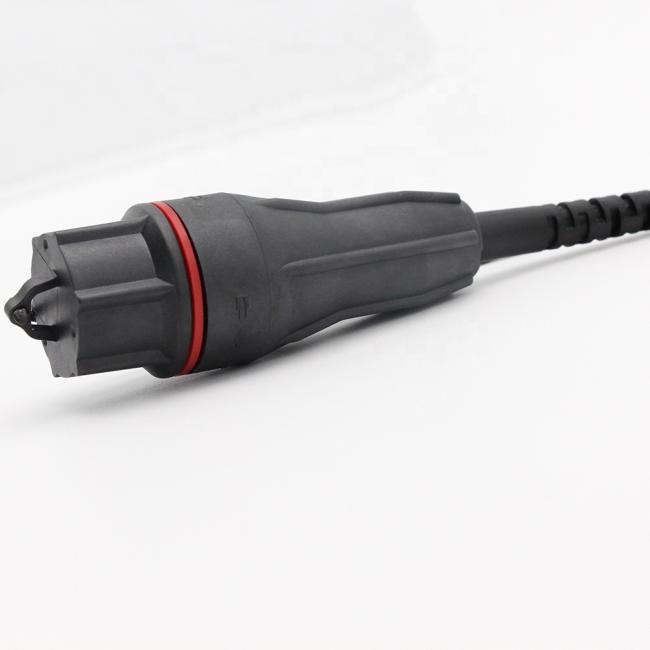

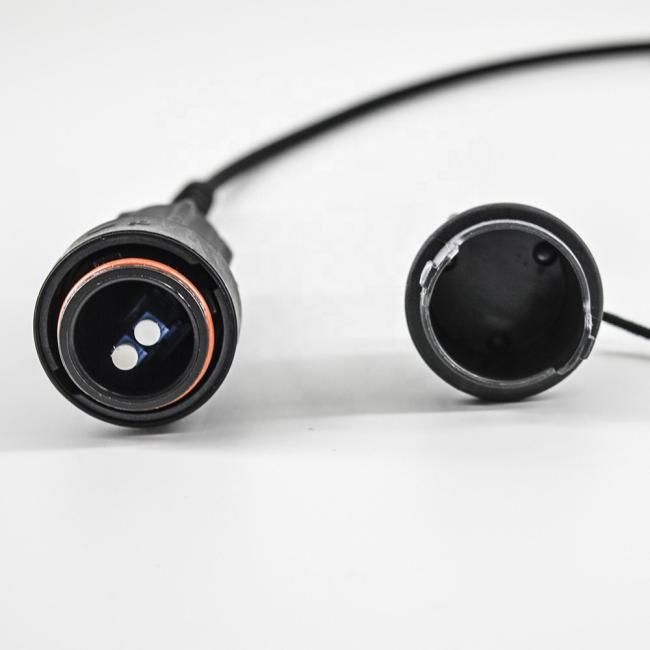

IP67 waterproof Fullaxs to LC duplex Fiber Optic Patch Cords, Single mode G657A1 5.0mm LSZH Jacketed

Fullaxs, a standard waterproof interface, designed & developed by TE is widely used for the wireless base station linked to FTTA equipment that set up outdoor environment. Compared with ODVA or standard PDLC , Fullaxs its waterproof IP has better performance even up to IP68,and it also has higher sealability and strength.As we known, Not only TE Fullaxs fall with Ericsson’s equipments and facilities , but also Rosenberger and Senko do. Although their appearance are not the same, TE Fullaxs, Rosenberger& Senko are compatible

Feature:

Field installable version available

Open bulkhead for easy access to SFP

Multimode and singlemode

Duplex LC interface
Water proof, dust proof and corrosion resistant
Positive feedback to operator when fully mated
Bulkhead cutouts allow for removal of transceiver through the bulkhead (no need to open RRH for transceiver replacement)
Robust bayonet locking for easy, fast, and secure mating
Cost effective glass-filled polymer or metal die casted bulkhead


Application:
Remote Radio Heads (RRH)
Industrial outdoor applications

WiMAX and LTE Base Stations

Specifications
