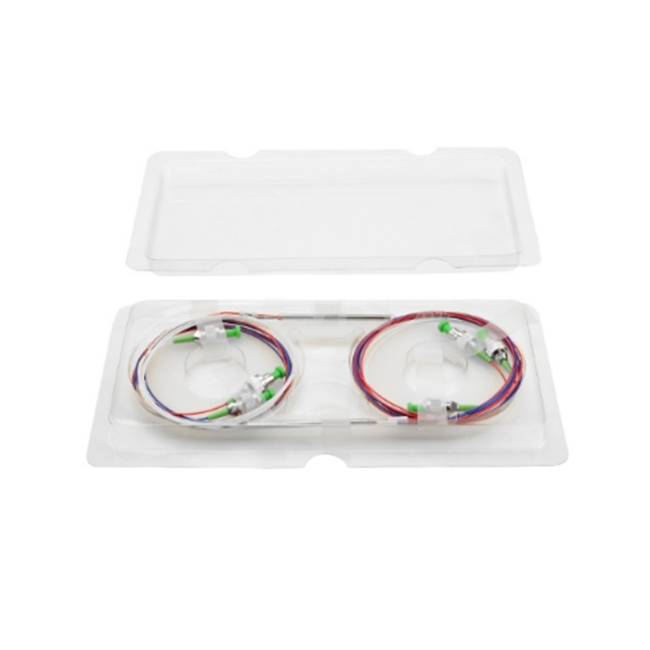

Single Mode 1x2 1310nm 1550nm SSC Fiber Optic Coupler

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 5~7 Business days

Brand: UNIFIBER

Product Description

1x2 1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC)

1310 or 1550 Single Mode Standard Fiber Optic Coupler (SSC) features low excess loss, high stability and reliability. It is widely used for optical fiber communication systems and CATV systems.

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Grade		P	A
Parameter		P	A
Operating wavelength (nm)		1310 or 1550, others on request
Operating bandwidth (nm)		± 15
Typical excess loss (dB)		0.07	0.1
Insertion loss (dB)	50/50	≤3.4	≤3.6
	45/55	≤4.1/3.1	≤4.3/3.3
	40/60	≤4.4/2.6	≤4.7/2.8
	35/65	≤5.2/2.3	≤5.5/2.5
	33/67	≤5.4/2.2	≤5.7/2.3
	30/70	≤5.7/1.9	≤6.0/2.0
	25/75	≤6.6/1.7	≤7.0/1.8
	20/80	≤7.6/1.25	≤8.0/1.35
	15/85	≤9.2/1.0	≤9.6/1.2
	10/90	9.2~11.0/≤0.65	9.0~11.2/≤0.8
	5/95	12.0~14.2 /≤0.4	11.75~14.45/≤0.5
	3/97	14.05~16.55/≤0.3	13.75~16.85/≤0.4
	2/98	15.7~18.5/≤0.25	15.35~18.85/≤0.35
	1/99	18.55~21.5/≤0.2	18.15~22.0/≤0.3
PDL (dB)		≤0.10	≤0.15
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
