1x3 1x4 Single Mode Optical Couplers 1310nm 1550nm

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 5~7 Business days

Brand: UNIFIBER

Product Description

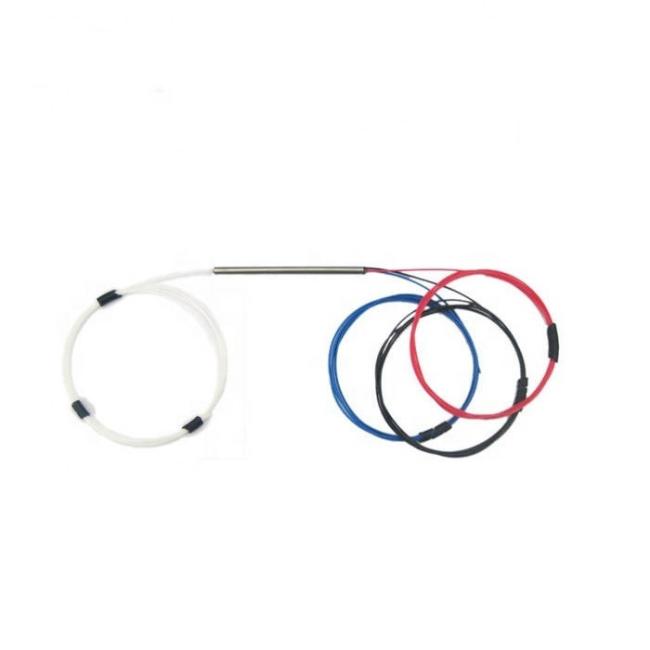

Compact Size 1x3 1x4 Monolithic Single Mode Optical Couplers 1310nm/1550nm

1×3, 1×4 monolithic couplers have the compact package size, low insertion loss, and high reliability performance. These couplers were designed for optical modules, the fiber sensors and fiber testing instruments.

Features
Low excess

loss Low PDL

High stability and reliability

Application
CATV
Optical communication systems
Testing instruments

Specifications

Type		Normal		Ultra Broadband
Parameter		Normal		Ultra Broadband
Grade		P	A	P	A
Operating wavelength (nm)		1310 and 1550
Operating bandwidth (nm)		±40		±80
Typical excess loss (dB)		0.07	0.1	0.07	0.1
Insertion loss (dB)	50/50	≤3.6	≤3.8	≤3.8	≤4.0
	45/55	≤4.2/3.2	≤4.4/3.4	≤4.5/3.3	≤4.7/3.5
	40/60	≤4.7/2.7	≤4.9/2.9	≤5.0/2.8	≤5.2/3.0
	35/65	≤5.4/2.4	≤5.7/2.6	≤5.8/2.5	≤6.1/2.7
	33/67	≤5.7/2.2	≤6.0/2.4	≤6.1/2.3	≤6.4/2.5
	30/70	≤6.0/1.9	≤6.3/2.1	≤6.4/2.0	≤6.7/2.2
	25/75	≤7.0/1.7	≤7.3/1.9	≤7.3/1.7	≤7.7/1.9
	20/80	≤7.9/1.3	≤8.4/1.4	≤8.3/1.3	≤8.7/1.5
	15/85	≤9.5/1.0	≤10.0/1.2	≤9.6/1.0	≤10.1/1.2
	10/90	9.2~11.2/≤0.75	8.80~11.40 /≤0.8	9.15~11.05 /≤0.75	8.75~11.45/≤0.8
	5/95	12.05~14.15/≤0.4	11.60~14.60 /≤0.5	12.00~14.25/≤0.45	11.50~14.70/≤0.5
	3/97	14.1~16.5/≤0.35	13.60~17.05/≤0.45	14.00~16.60 /≤0.35	13.45~17.15/≤0.45
	2/98	15.75~18.45/≤0.3	15.15~19.00/≤0.4	15.60~18.60/≤0.3	14.95~19.20/≤0.4
	1/99	18.6~21.6 /≤0.25	17.95~22.25/≤0.35	18.35~21.85/≤0.25	17.60~22.55/≤0.35
PDL (dB)		≤0.15	≤0.2	≤0.15	≤0.2
Directivity (dB)		≥55
Operating temperature (℃)		-40 ~ +85
