LC/UPC To LC/UPC Duplex OM3 OM4 Fiber Optic Adapter

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

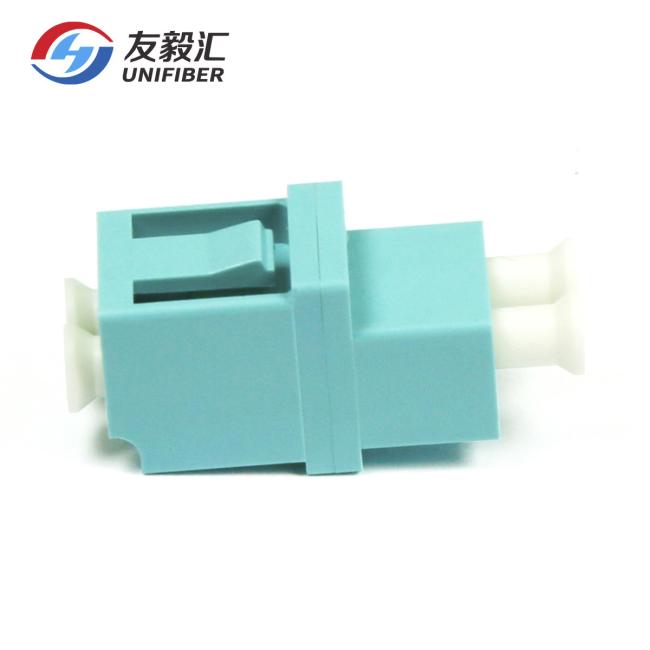

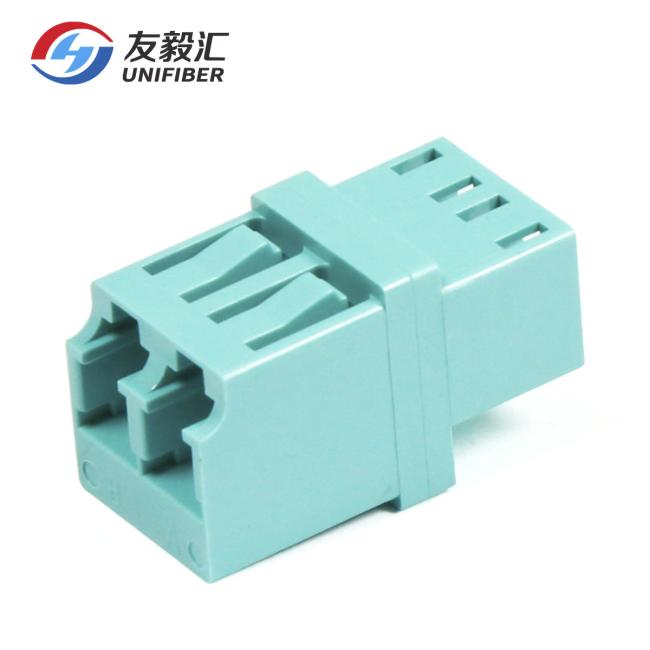

LC Multimode OM3 Duplex Adapter is a mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve that holds two ferrules together. They are used to connect optical fiber connectors of the same type, such as FC, SC, LC, ST, MU, MTRJ, D4, DIN, MPO ect, widely used in optical fiber communications equipment, measuring appliance and so on, the performance stably reliable.

Features	Applications
Simplex, duplex versions available	LAN, WAN, CATV
Phosphor bronze or Zirconia sleeve	FTTX, FTTH
Low insertion loss and back reflection loss	Telecommunication networks
High precision alignment	Fiber Communication Systems
Compact design	Data Processing Networks
Comply to ROHS requirement	Industrial, Mechanical and Military

Performance Specifications

Parameter	SM			MM
Polish	PC	UPC	APC	PC
Wire Diameter(mm)	0.9mm,2.0mm,3.0mm
Insertion Loss(dB)	≤0.3	≤0.2	≤0.3	≤0.3
Return Loss(dB)	≥45	≥50	≥60	≥20
Interchangeability(dB)	≤0.2
Plug-pull life(times)	＞1000
Operating temperature(℃)	-40~+75
Storage temperature(℃)	-45~+80
