0.9mm SC APC Fiber Fused Biconical Taper Coupler For CATV

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

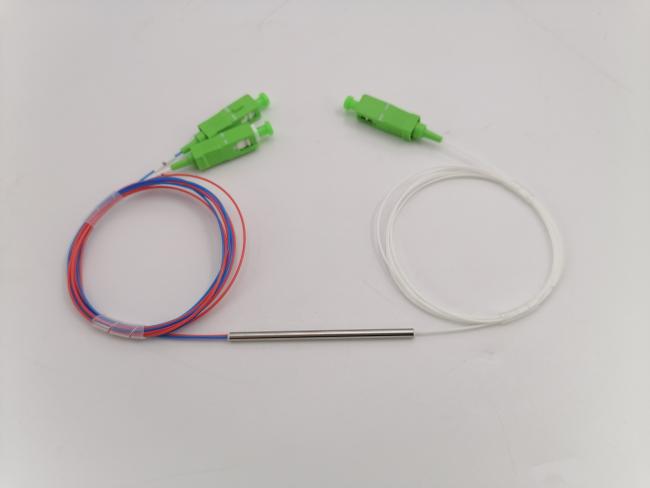

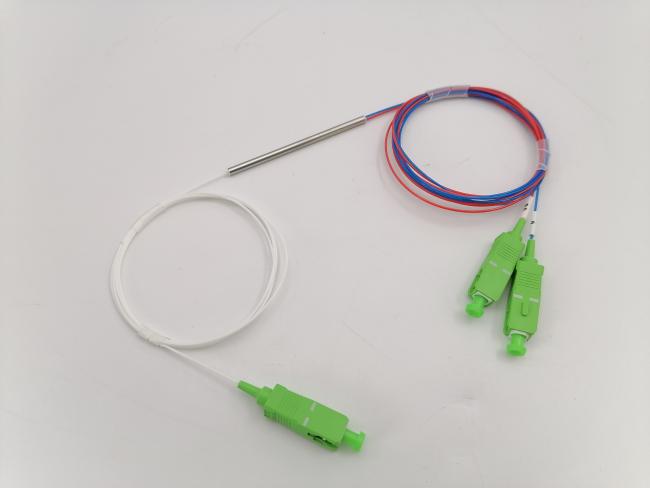

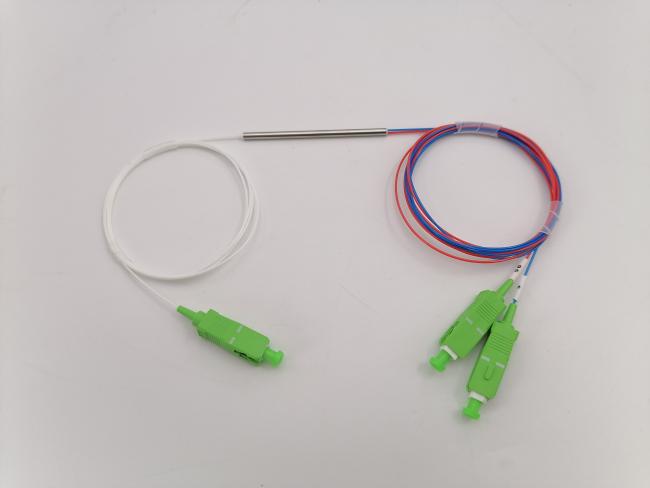

Fiber Fused Biconical Taper Coupler 1 in 2 out mini steel tube 0.9mm SC APC 50/50 For CATV

Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

Features:

Low Insertion Loss
Low Excess Loss
Low PDL
Good Directivity
Good environmental Stability
Various Coupling Ratio
Compact Size

Standard/Flattened/Broadband/Star/Tree

Application:

Optical Fiber Communication Systems
Optical Fiber CATV
Passive Optical Network (PON)
Optical Amplifiers
Optical Access Networks/LAN
Monitoring Systems
Optical Fiber Sensor

Parameter	Specification
Channel Number	1×2 or 2×2
Operating Wavelength (nm)	1310,1550,1310/1550,1310/1550/1490
Operating Bandwidth (nm)	±40
Coupling Ratio	Coupling Ratio Insertion Loss(dB)
	P Grade	A Grade
50/50	≤3.3	≤3.5
40/60	≤4.5/2.6	≤4.7/2.8
30/70	≤5.7/1.9	≤5.9/2.1
20/80	≤7.6/1.3	≤7.75/1.38
10/90	≤10.85/0.68	≤11.2/0.75
5/95	≤14.4/0.45	≤15.5 /0.48
2/98	≤18.5/0.6	≤19.8/0.38
1/99	≤21.8/0.28	≤22.8/0.35
PDL (dB)	≤0.15	≤0.2
Directivity(dB)	≥50
Return Loss(dB)	≥55

Parameter		Specification
Operating Wavelength	nm	Single Window1 Dual,Three Window2
(1×N)		N=3	N=4	N=5	N=8	N=16	N=24	N=32	N=64
Fiber Type		Corning SMF-28e
IL(MAX)	dB	5.41/5.62	7.01/7.22	7.81/8.02	10.01/10.42	13.51/13.92	15.01/15.42	17.31/17.52	21.01/21.52
Uniformity	dB	0.51/0.62	0.51/0.62	0.61/0.82	0.81/1.02	1.11/1.32	1.21/1.52	1.31/1.52	2.11/2.52
Return Loss	dB	≥55
Directivity	dB	≥55
PDL	dB	<0.20	<0.20	<0.30	<0.30	<0.40	<0.50	<0.50	<0.50
