PP GF Hinged 48core Fiber Optic Splice Closure IP55

Price Negotiable

Price: Negotiable

MOQ: 10pcs

Delivery Time: 3~5 business days

Brand: UNIFIBER-OEM

Product Description

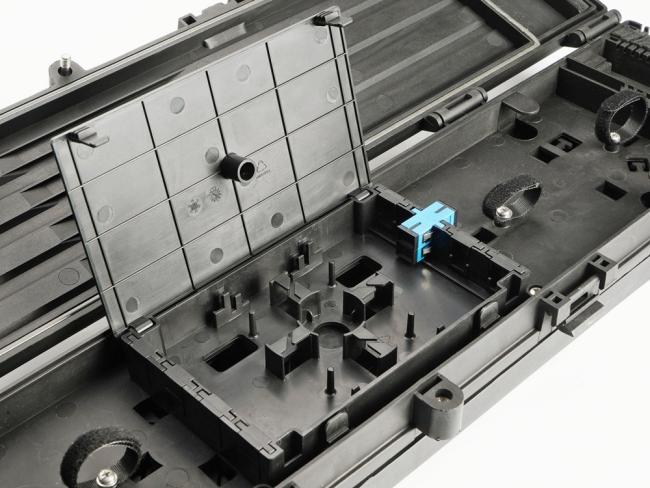

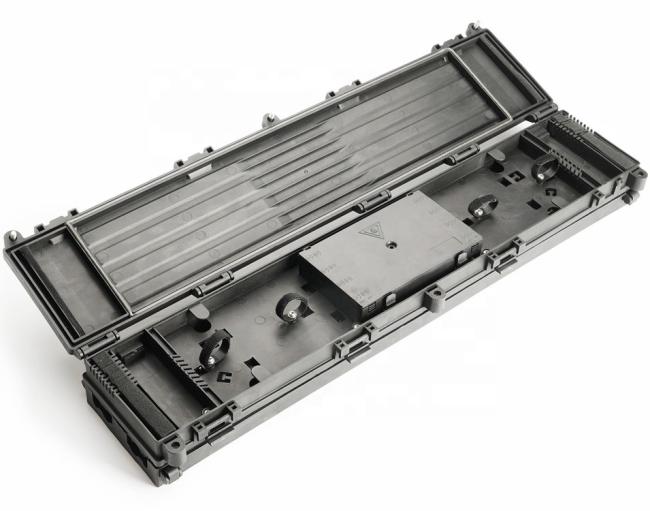

Hinged Fiber Optic Splicing Closure 48 Core features a vented structure of 2-layer function division. The upper layer is designed for fiber distribution, and the bottom layer for splice fusion. The cables are fixed by hinged buckles which ensures good fixing performance. The well structured fiber closure is of 2 inlets and 2 outlets, together with 16 drop ports. It is applicable to SC adapters and removable PLC splitters. The protection grade of this enclosure reaches IP55.

Features:

Ports: 2 inlets (Φ10 - Φ16 mm), 2 outlets (Φ10 - Φ16 mm), 16 drop ports (Φ2 * Φ3 mm)

Capacity: 48

Seal: Mechanical

Waterproof: IP55

Material: PP+GF

PLC splitter: 1*1:8/ 1*1:16, mini type

Adapters: SC, 18 PCS

Application:

aerial

Specification:

Style	Hinged
Dimensions (L×W×H)	668×160×70 mm
Material	PP+GF
Sealing Type	Mechanical Seal
Protection Grade	IP55
Cable Ports	Inlet	2	Φ10 - Φ16 mm
	Outlet	2
	Drop	16	Φ2 * Φ3 mm
Fiber Splice Capacity	48
Tray Capacity	48
Tray Count	1
PLC Splitter	1:8/ 1:16 Mini		1 PCS
Adapter	SC		16 PCS
Weight	2.0 - 2.5 kg
Application	Aerial
Packing Type	Inner Carton		690×165×95 mm (1 PCS)
	Outer Carton		705×350×415 mm (8 PCS)
