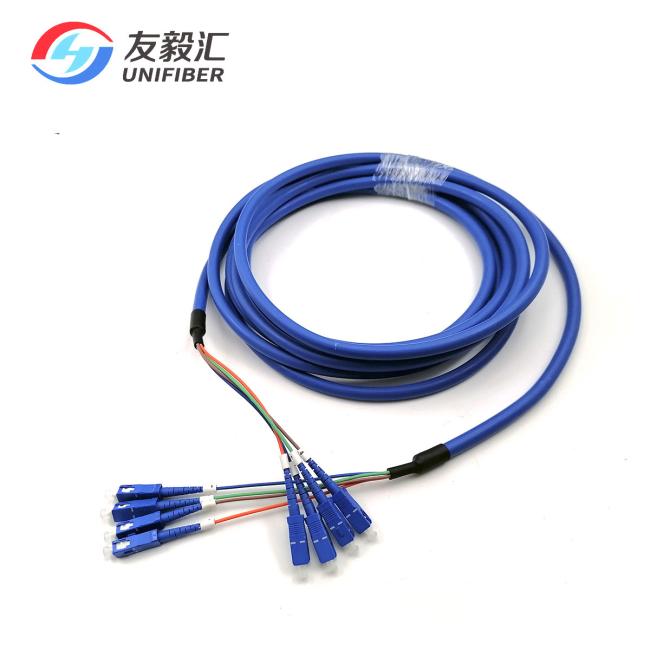

G652D Double Sheathed SC/UPC-SC/UPC Armored Patch Cord

Price Negotiable
Price: Negotiable
MOQ: 10pcs
Delivery Time: 3~5 business days
Brand: UNIFIBER-OEM
Product Description

MGTSV is suitable for coal, gold, iron ore and other mines. It has the flame retardant, rodent resistance property, so it is a
good choice for mines. Especially for the accident-prone land mines, to ensure smooth communication, reduce losses when the accident happens.



Features:

Good flame retardant performance.
High strength loose tube that is hydrolysis resistant.
Double sheathes and single armor providing excellent crush resistance, water proof, and avoiding rat bite.
Loose tube wrapped by non-weaven tape has the water blocking ability.
Special tube filling compound ensure a critical protection of fiber.
Blue PVC jacket: Flame retardant, the blue color is easy to identify.
Crush resistance and flexibility.



Application:

Professional usage for the coal industry
Tunnel shaft
Mine



Specification:



Parameters
4 Core Double Sheathes SC/UPC-SC/UPC Outdoor Mining Fiber Optic Armored Patch Cord PE Blue
Fiber Type
SM(G.652/G.657A)
MM(OM1/OM2/OM3)
Jacket Materials
LSZH/OFNR/PVC
Connector Type
SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials
Ceramic
Testing Wavelengths
1310±30/1550±30nm
850±30/1300±30nm
Insertion Losss(dB)
TIA/EIA-455-107
≤ 0.3dB
(PC/UPC/APC)
≤ 0.3dB
(PC/UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB(PC/UPC)
≥55dB(APC)
≥35dB(PC/UPC)
Exchangeability
≤ 0.2dB
Cable Assemblies
Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)
-10~ + 70
Storage Temperature (° C)
-40 ~ +85
Package
1unit/bag
*All values specified are with connectors.
